Same model may have multiple batches, images only for reference.

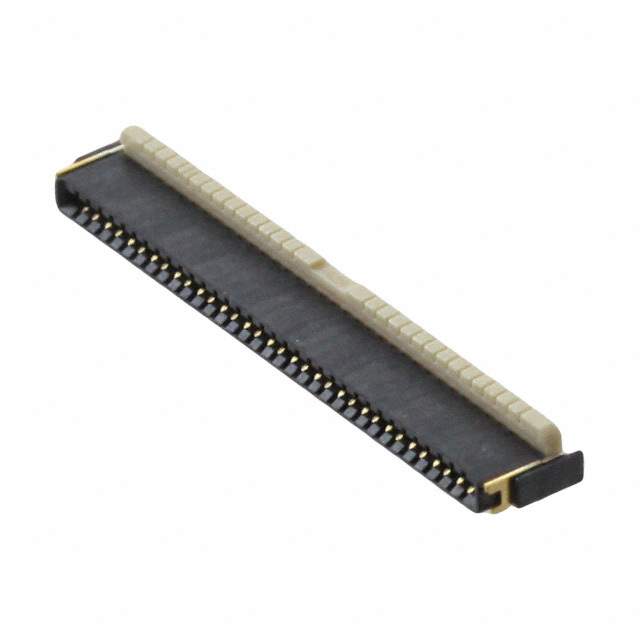

AYF533435 Real Image
Same model may have multiple batches, images only for reference.

AYF533435

Part No AYF533435
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 34POS 0.50MM R/A / 34 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y5B
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 34
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 255-3483-6,255-3483-2,255-3483-1,AYF533435-ND
Standard Package 5,000
Win Source Part Number 1193386-AYF533435
Ultra Librarian 3D Model Ultra Librarian AYF533435 CAD Model

Description

The Panasonic Electric Works Y5B series AYF533435 is a 34-position, surface mount, right angle connector that is commonly used in various electronic applications such as LCD panels, digital cameras, and mobile phones.

  • Positions: 34
  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Pitch: 0.020" (0.50mm)
  • Current Rating: 0.5A per contact
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Locking Feature: Flip Lock and Backlock
