Same model may have multiple batches, images only for reference.

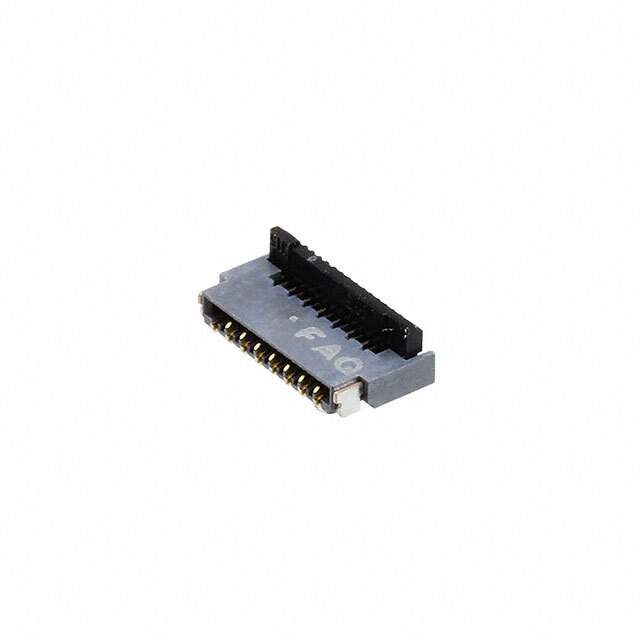

FH35C-15S-0.3SHW(99) Real Image
Same model may have multiple batches, images only for reference.

FH35C-15S-0.3SHW(99)

Part No FH35C-15S-0.3SHW(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 15POS 0.30MM R/A / 15 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FH35C-15S-0.3SHW(99) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH35C
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 15
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Gray
Actuator Color Black
Mating Cycles 10
Base Product Number FH35C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 580-2919-0-99,H122266CT,H122266DKR,H122266TR
Standard Package 500
Win Source Part Number 1201191-FH35C-15S-0.3SHW(99)
Ultra Librarian 3D Model Ultra Librarian FH35C-15S-0.3SHW(99) CAD Model

Description

The Hirose Electric Co Ltd FH35C-15S-0.3SHW(99) is a 15-position FFC, FPC (Flat Flexible) Connector used in connectors and interconnects.

  • Pitch: 0.012 inches (0.30mm)
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Termination: Solder
  • Mounting Type: Surface Mount, Right Angle
  • Packaging: Tape & Reel
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4051
