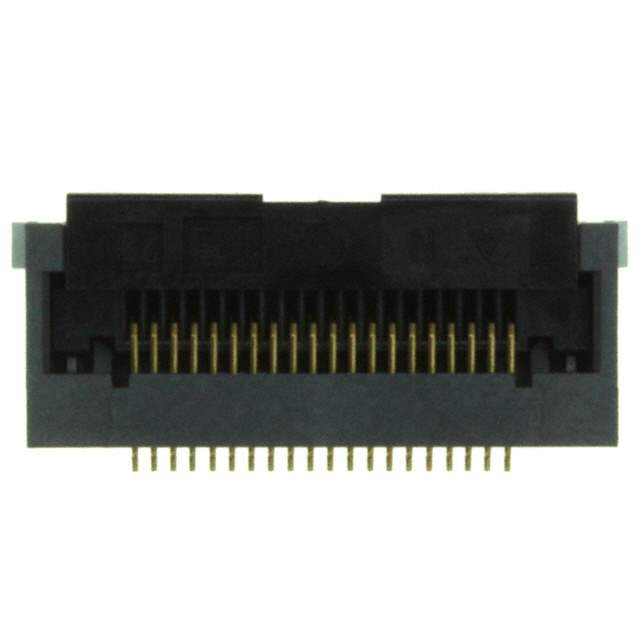

FH28E-20S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH28E-20S-0.5SH(05)

Part No FH28E-20S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 20POS 0.50MM R/A / 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH28E-20S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH28
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish Thickness 2.00µin (0.051µm)
Housing Color Gray
Actuator Color Black
Base Product Number FH28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names HFV020TR,*FH28E-20S-0.5SH(05),HFV020CT,586-1822-2-05,HFV020DKR,FH28E20S05SH05
Standard Package 2,000
Win Source Part Number 1224795-FH28E-20S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH28E-20S-0.5SH(05) CAD Model

Description

The Hirose Electric Co Ltd FH28E-20S-0.5SH(05) is a connector with contacts at the bottom. Bold the product name (e.g., BAV99S,135 → FH28E-20S-0.5SH(05)) and manufacturer (e.g., Nexperia USA Inc. → Hirose Electric Co Ltd).

  • Series: FH28
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Termination: Solder
  • Package: Tape & Reel
  • Standard Package: 2,000 pieces
  • Cable End Type: Tabbed
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Gray
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
