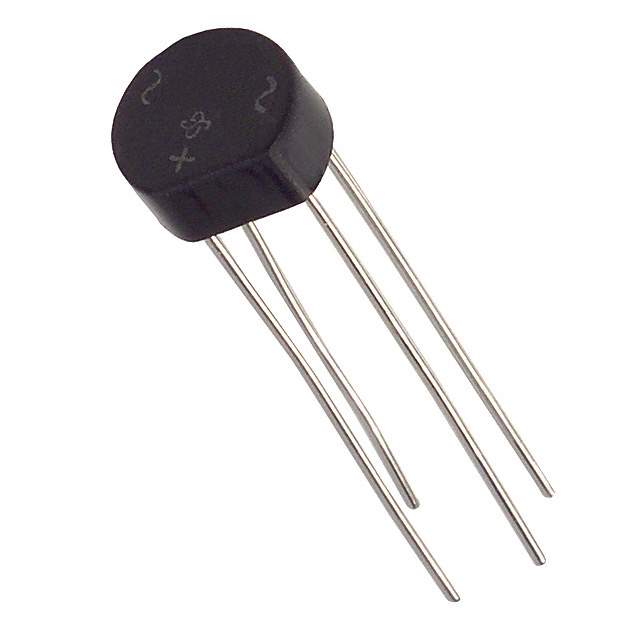

Same model may have multiple batches, images only for reference.

W02G-E4/51

Name: W02G-E4/51
Brand: Vishay
SKU: 1325191
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	W02G-E4/51
Manufacturer	Vishay
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 200V 1.5A WOG / Bridge Rectifier Single Phase Standard 200 V Through Hole WOG
Datasheet	W02G-E4/51 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer	Vishay General Semiconductor - Diodes Division
Packaging	Bulk
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	200 V
Current - Average Rectified (Io)	1.5 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 1 A
Current - Reverse Leakage @ Vr	5 µA @ 200 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Through Hole
Case / Package	4-Circular, WOG
Supplier Device Package	WOG
Base Product Number	W02
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	W02G-E4/1,W02G-E4/1GI-ND,W02G-E4/1TR-ND,W02GE451,W02G-E4/1TR,W02G-E4/1GI,W02G-E4/1-ND,W02G-E4/51GI
Standard Package	3,000
Win Source Part Number	1325191-W02G-E4/51
Ultra Librarian 3D Model	Ultra Librarian W02G-E4/51 CAD Model

Alternative Products

Description

This electronic component is a bridge rectifier manufactured by Vishay General Semiconductor - Diodes Division with part number 1325191-W02G-E4/51.

Voltage Peak Reverse (Max): 200V
Current Average Rectified (Io): 1.5A
Mounting Type: Through Hole
Supplier Device Package: WOG
Temperature Range: Between -55°C to 150°C
ROHS3: Compliant
