Same model may have multiple batches, images only for reference.

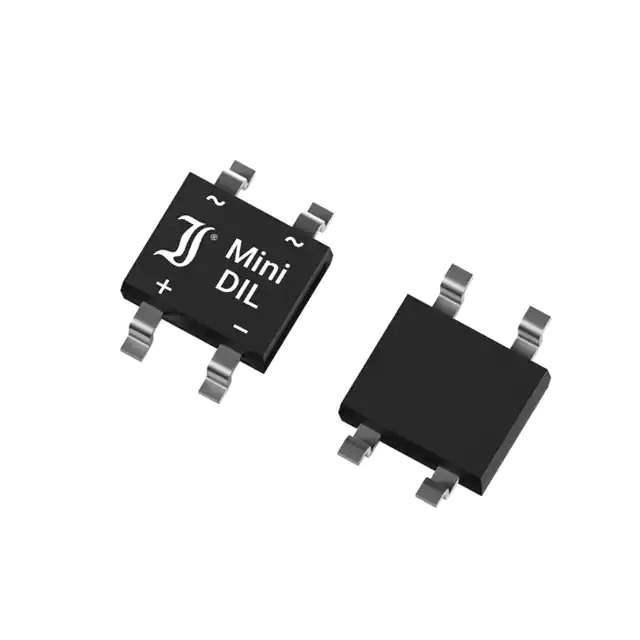

S40F Real Image
Same model may have multiple batches, images only for reference.

S40F

Part No S40F
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER, SINGLE PHASE,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr DIOTEC Electronics Corporation
Package Strip
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 80 V
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 80 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package TO-269AA MINIDIL SLIM
Standard Package 960 pcs
Win Source Part Number 662748-S40F
Ultra Librarian 3D Model Ultra Librarian S40F CAD Model

Description

The 662748-S40F is a single phase bridge rectifier diode manufactured by DIOTEC Electronics Corporation.

  • Category: Discrete Semiconductor Products
  • Series: Bridge Rectifiers
  • Package: strip
  • Standard Package: 960 pcs
  • Type: standard
  • Current Rating: 800 mA
  • Forward Voltage: 1.3 V @ 800 mA
  • Reverse Leakage Current: 5 µA @ 80 V
  • Operating Temperature: -50°C to 150°C
  • Mounting Type: surface mount
  • Package Type: TO-269AA, 4-BESOP
  • HTSUS code: not specified
