Products specifications

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 160 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 500 mA
Current - Reverse Leakage @ Vr 5 µA @ 160 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package 4-SOIC
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 755278-MYS80
Ultra Librarian 3D Model Ultra Librarian MYS80 CAD Model

Description

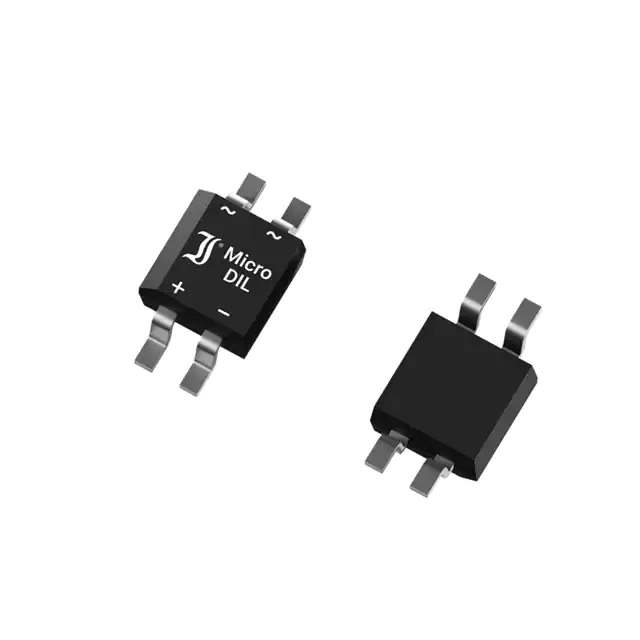

The 755278-MYS80 is a single-phase bridge rectifier diode with an average rectified current (Io) of 500mA.

  • Average Rectified Current (Io): 500mA
  • Forward Voltage (Vf): 1.2V @ 500mA
  • Reverse Leakage Current: 5μA @ 160V
  • Peak Reverse Voltage (Vr): 160V
  • Suitable for: surface mount applications
  • Package: TO-269AA, 4-BESOP
  • Package Quantity: 4,000 pcs
  • Technology: Standard
  • Operating Temperature: -50°C to 150°C
  • Commonly used in: bridge rectifier circuits and power supplies
