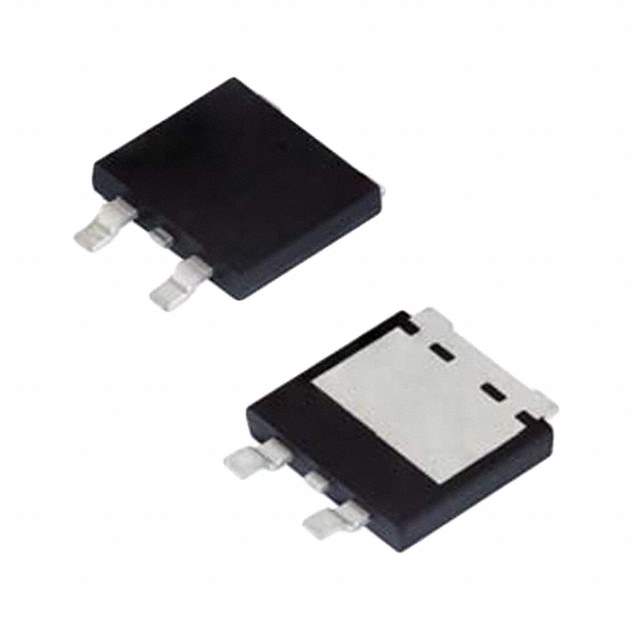

V40D120C-M3/I Real Image
Same model may have multiple batches, images only for reference.

V40D120C-M3/I

Part No V40D120C-M3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 120V SMPD
Datasheet
V40D120C-M3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series eSMP, TMBS
Packaging Reel - TR
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 120V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) @ If 890mV @ 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 120V
Operating Temperature - Junction -40°C ~ 150°C
Mounting SMD
Package TO-263-3, D2Pak (2 Leads + Tab) Variant
Manufacturer Package SMPD
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 735694-V40D120C-M3/I
Popularity Medium
Supply and Demand Status Limited
Family Name V40D120C
Introduction Date May 13, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian V40D120C-M3/I CAD Model

Description

The Vishay V40D120C-M3/I is a Schottky diode.

  • Current Rating: 20A
  • Maximum Voltage: 120V
  • Fast Recovery Speed: 200mA (Io)
  • Low Forward Voltage: 890mV @ 20A
  • Diode Configuration: 1 Pair Common Cathode
  • Package: TO-263-3, D2Pak (2 Leads + Tab) Variant
  • Operating Temperature Range: -40°C to 150°C
  • Series: eSMP, TMBS
  • Manufacturer: Vishay Semiconductor Diodes Division
  • Packaging: Reel
  • Halogen-Free Standards: Compliant
  • Alternative Parts: V40D120CHM3/I, SG40TC12M, YG869C12R
  • Estimated EOL Date: 2024
