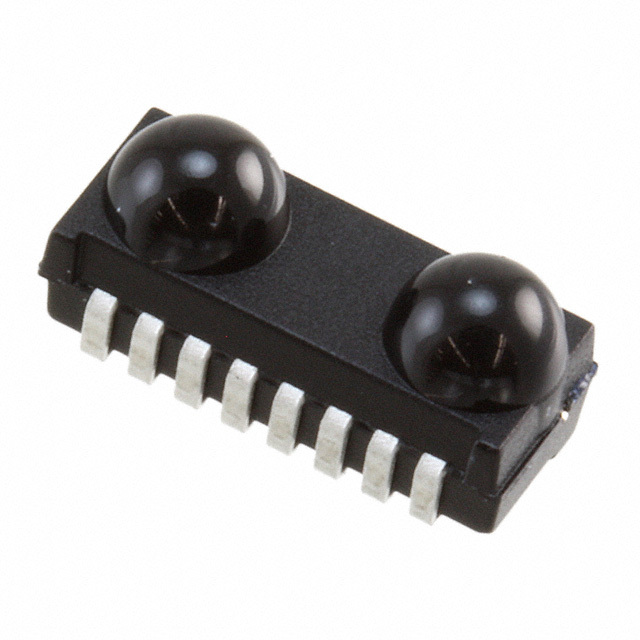

TFDU4101-TT3 Vishay TFDU4101-TT3 Real Image TFDU4101-TT3 real image TFDU4101-TT3 label picture 2
Same model may have multiple batches, images only for reference.
TFDU4101-TT3 Vishay TFDU4101-TT3 Real Image TFDU4101-TT3 real image TFDU4101-TT3 label picture 2
TFDU4101-TT3 Vishay TFDU4101-TT3 Real Image TFDU4101-TT3 real image TFDU4101-TT3 label picture 2
Same model may have multiple batches, images only for reference.

TFDU4101-TT3

Part No TFDU4101-TT3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 115.2KBIT 4MM 8-SMD
Datasheet
TFDU4101-TT3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V to 5.5 V
Idle Current, Typ @ 25°C 75μA
Link Range, Low Power 1m
Orientation Top View
Temperature Range - Operating -30°C to 85°C
Size 9.7mm x 4.7mm x 4.0mm
Standards IrPHY 1.0
Win Source Part Number 032102-TFDU4101-TT3
Family Name TFDU4101
Introduction Date October 04, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Unknown
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Medical, Industrial
Ultra Librarian 3D Model Ultra Librarian TFDU4101-TT3 CAD Model

Description

The Vishay TFDU4101-TT3 is a sensor/transducer with a data rate of 115.2kbs (SIR) and a link range of 1m in low power mode.

  • Size: 9.7mm x 4.7mm x 4.0mm
  • Supply Voltage: 2.4 V to 5.5 V
  • Family: TFDU4101 family
  • Idle Current: 75μA @ 25°C
  • Suitable for use in: consumer electronics, medical, and industrial applications
  • Packaging: reel - TR
  • Popularity Rating: high
