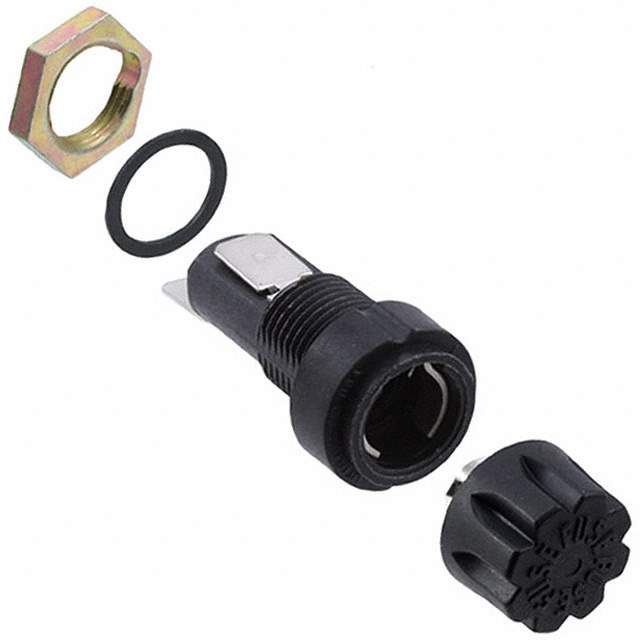

03420838H Real Image
Same model may have multiple batches, images only for reference.

03420838H

Part No 03420838H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Holder
Fuse Type Cartridge
For Use With/Related Products 3AG
Fuse Size 1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 20A
Mounting Style Panel Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Brass
Contact Finish Nickel
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808797-03420838H
Ultra Librarian 3D Model Ultra Librarian 03420838H CAD Model

Description

The Littelfuse Inc 747284 is a high-quality fuse holder from Littelfuse Inc.

  • Fuse Type: 3AG
  • Termination Style: Quick connect
  • Contact Diameter: 0.250" (6.3mm)
  • Mounting Style: Panel Mount
  • Contact Material: Brass
  • Contact Finish: Nickel
  • Current Rating: 20A
  • Voltage Rating: 250V
  • Fuse Size: 1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
  • Circuits: 1
  • Manufacturer Pack Quantity: 100
