Same model may have multiple batches, images only for reference.

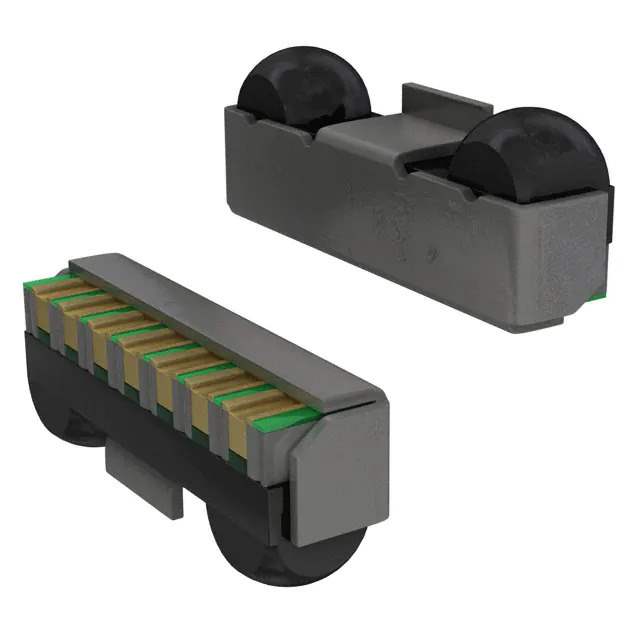

CND0204A Real Image
Same model may have multiple batches, images only for reference.

CND0204A

Part No CND0204A
Manufacturer Panasonic
Catalog IrDA Transceiver Modules
Description IRDA MODULE 115.2KBPS 8 PIN SMD / 115.2kbs (SIR) IRDA Transceiver Top View
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - IrDA Transceiver Modules
Mfr Panasonic
Package Tape & Reel
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2.4 V ~ 3.6 V
Idle Current, Typ @ 25°C 200 nA
Link Range, Low Power 42cm
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Size 7.2mm x 1.6mm x 2.6mm
Shutdown Yes
Standard Package 2,500 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 867027-CND0204A
Ultra Librarian 3D Model Ultra Librarian CND0204A CAD Model

Description

The CND0204A IrDA transceiver module from Panasonic is a compact and reliable component designed for infrared communication applications.

  • Orientation: Top View
  • Package: Tape & reel
  • Data Rate: 115.2kbs (SIR)
  • Size: 7.2mm x 1.6mm x 2.6mm
  • Voltage Supply: 2.4V to 3.6V
  • Idle Current: 200 nA
  • Link Range: 42cm in low-power mode
  • Operating Temperature: -30°C to 85°C
  • Product Status: Obsolete
