Same model may have multiple batches, images only for reference.

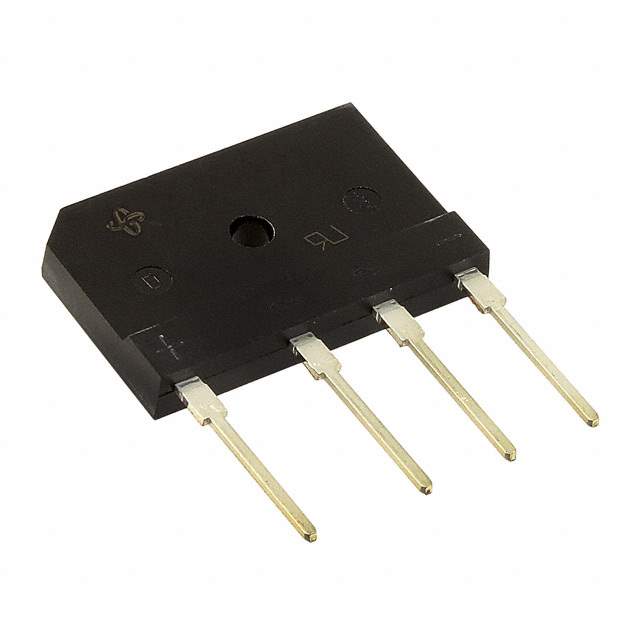

PB3008-E3/45 Real Image
Same model may have multiple batches, images only for reference.

PB3008-E3/45

Part No PB3008-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Enhanced isoCink Bridge Rectifiers
Datasheet
PB3008-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 15A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, PB
Manufacturer Package isoCINK+ PB
Win Source Part Number 1235377-PB3008-E3/45
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name PB3008
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PB3008-E3/45 CAD Model

Description

The Vishay Semiconductor Diodes Division offers the PB3008-E3/45, a single-phase diode that can operate at an average rectified current of 30A.

  • Peak Reverse Voltage: 800V
  • Forward Voltage: 1.1V @ 15A
  • Current Reverse Leakage: 10μA @ 800V
  • Operating Temperature: -55°C to 150°C
  • Package: 4-SIP, PB
  • Mounting: Through a hole
  • Application: Ideal for use in various applications, including discrete semiconductor products.
