Same model may have multiple batches, images only for reference.

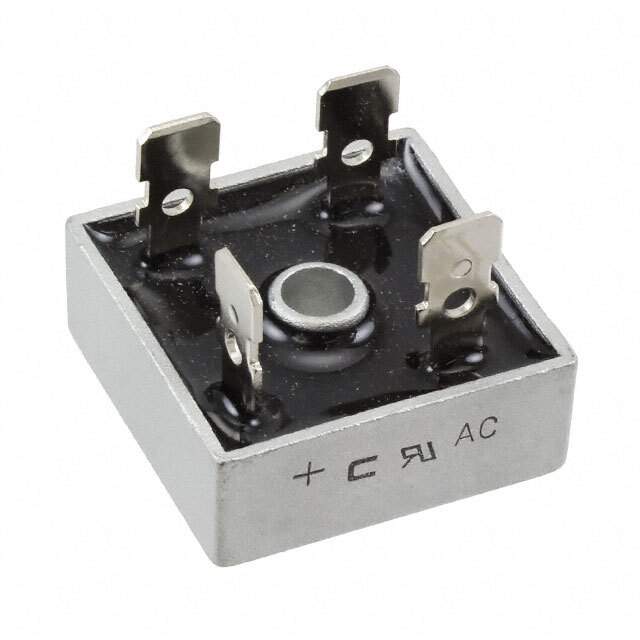

KBPC2510-G Real Image
Same model may have multiple batches, images only for reference.

KBPC2510-G

Part No KBPC2510-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 25A 1000V KBPC
Datasheet
KBPC2510-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 12.5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package KBPC
Win Source Part Number 1050756-KBPC2510-G
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KBPC2510-G CAD Model

Description

The Comchip Technology 1050756-KBPC2510-G is a single-phase standard diode that is used in power management.

  • Chassis Mount: Yes
  • Packaging: Bulk
  • Average Rectified Current: 25A
  • Maximum Forward Voltage: 1.1V @ 12.5A
  • Maximum Peak Reverse Voltage: 1000V
  • Reverse Leakage Current @ 1000V: 10μA
  • Operating Temperature Range: from -55°C to 150°C
  • Supply and Demand Status: Balanced
  • Pieces per Package: 50
