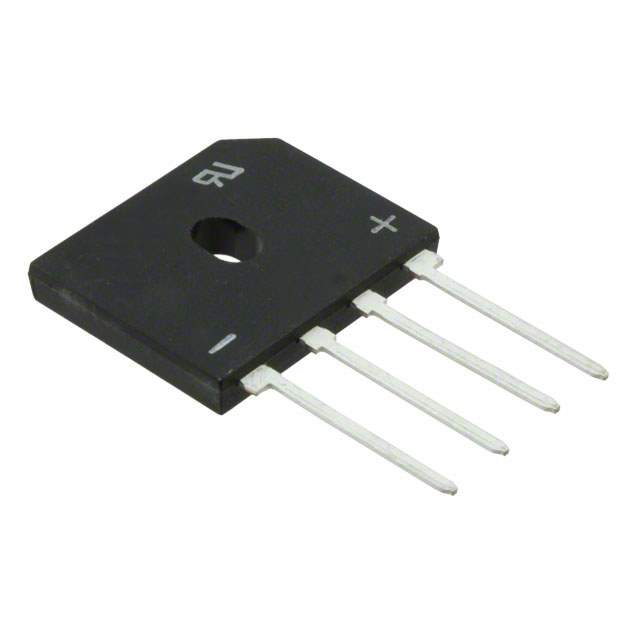

GBU6M-E3/45 Real Image
Same model may have multiple batches, images only for reference.

GBU6M-E3/45

Part No GBU6M-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 3.8A GBU
Datasheet
GBU6M-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 15 Weeks
Features Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU
Manufacturer Vishay
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, GBU
Case / Package GBU
Family Name GBU6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number GBU6M-E3/45GI, GBU6M-E3/45-ND
Quantity per package 800
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919523-GBU6M-E3/45
Ultra Librarian 3D Model Ultra Librarian GBU6M-E3/45 CAD Model

Description

The GBU6M-E3/45 bridge rectifier is a single-phase standard rectifier with a voltage rating of 1 kV from Vishay.

  • Type: Single-Phase Standard Rectifier
  • Voltage Rating: 1 kV
  • Package: 4-SIP, GBU
  • Mounting: Through Hole
  • Family: GBU6
  • Category: Discrete Semiconductor Products
  • Operating Temperature: -55°C to 150°C (TJ)
  • Package Type: Tube
  • Quantity per Package: 800
  • Estimated Production Lead Time: 15 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • Supply and Demand: Balanced
