Product Overview: ON Semiconductor W06G Rectifier

The ON Semiconductor W06G is a highly efficient, single-phase glass passivated bridge rectifier offering a robust solution for AC to DC conversion in a variety of applications. This rectifier is designed to convert alternating current (AC) input into a stable direct current (DC) output, ensuring a reliable power supply for electronic circuits.

Key Features

• Peak Repetitive Reverse Voltage: The W06G is capable of withstanding peak repetitive reverse voltages of up to 600V, making it suitable for high-voltage applications.
• Forward Current: It offers a high forward current of 1.5A, ensuring adequate current handling capabilities for a wide range of electronic devices.
• Surge Overload Rating: With a surge overload rating of 50A, this rectifier can handle high surge currents, providing protection against sudden voltage spikes.
• High-Temperature Soldering: The terminals are capable of withstanding 260°C for 10 seconds in a wave soldering process, ensuring durability and reliability during assembly.

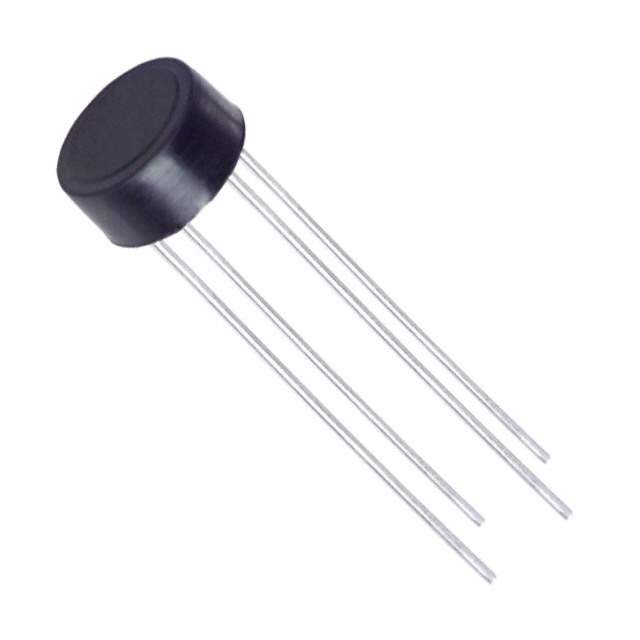

• Case: The W06G comes in a WOG case style, which is a through-hole package, allowing for easy mounting on printed circuit boards (PCBs).

Applications

The W06G is versatile and can be used in a wide range of applications, including:

• Power supplies
• Adapters
• Battery chargers
• Home appliances
• Office machines
• Telecommunication devices

Environmental and Quality Certifications

ON Semiconductor is committed to environmental stewardship and product quality. The W06G rectifier is manufactured in facilities that are registered to ISO 9001:2000 and ISO/TS 16949 standards, ensuring that the highest levels of quality and reliability are met.

Conclusion

The ON Semiconductor W06G is a dependable and efficient solution for your rectification needs. Its robust design, combined with high voltage and current capabilities, make it an ideal choice for designers looking to create stable and reliable power supplies in their electronic devices.
