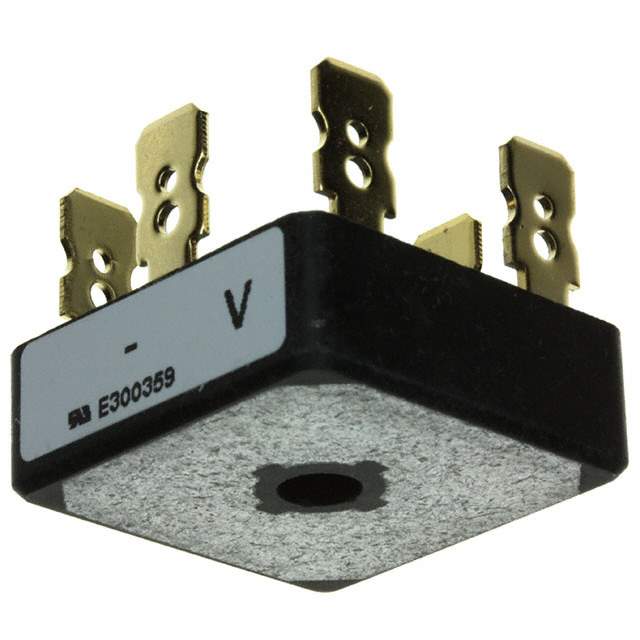

36MT160 Real Image
Same model may have multiple batches, images only for reference.

36MT160

Part No 36MT160
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE 3-PHA 1600V 35A D-63
Datasheet
36MT160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1600V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 1600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting QC Terminal
Case / Package D-63
Win Source Part Number 197680-36MT160
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 36MT160 CAD Model

Description

Overview

The 36MT160 is a high-quality power rectifier designed for reliability and efficiency in power conversion applications.

Applications

  • Power Supply Units
  • Motor Drives
  • Industrial Controls

Features and Benefits

  • High thermal efficiency
  • Long operational life
  • Robust design for harsh environments

Additional Details

Engineered for excellence, the 36MT160's advanced design provides consistent performance. It is suitable for a wide array of power systems, ensuring superior conversion quality and reliability.
