Same model may have multiple batches, images only for reference.

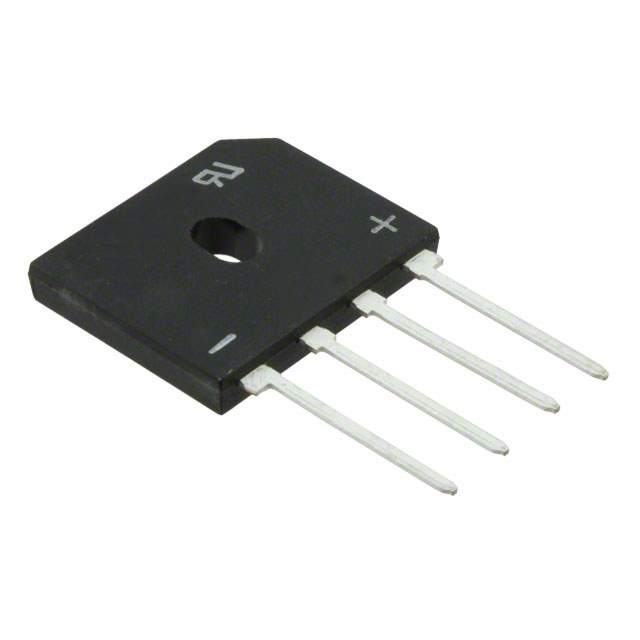

GBU4K-E3/45 Real Image
Same model may have multiple batches, images only for reference.

GBU4K-E3/45

Part No GBU4K-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 3A GBU
Datasheet
GBU4K-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 15 Weeks
Features Bridge Rectifier Single Phase Standard 800 V Through Hole GBU
Manufacturer Vishay
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, GBU
Case / Package GBU
Family Name GBU4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number GBU4K-E3/45-ND, GBU4K/45, GBU4K, GBU4KE345, GBU4K-ND, GBU4K-E3/45GI, GBU4K/45-ND
Quantity per package 20
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872616-GBU4K-E3/45
Ultra Librarian 3D Model Ultra Librarian GBU4K-E3/45 CAD Model

Description

The Vishay 872616-GBU4K-E3/45 is a single-phase standard bridge rectifier that is designed for through-hole mounting.

  • Rectifier Type: Single-Phase Standard
  • Voltage Rating: 800 V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Package Type: 4-SIP, GBU
  • Packaging: Tube
  • Package Quantity: 20 pieces per package
  • Family: GBU4
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99 compliant
  • Popularity: Medium
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 15 weeks
  • REACH: Unaffected
  • HTSUS code: 8541.10.0080
  • Other part numbers: GBU4K-E3/45-ND, GBU4K/45, GBU4K, GBU4KE345, GBU4K-ND, GBU4K-E3/45GI, and GBU4K/45-ND
