Same model may have multiple batches, images only for reference.

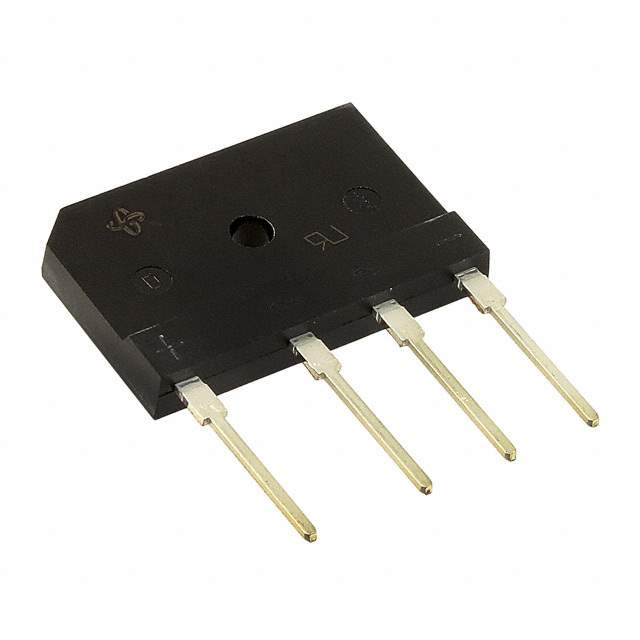

PB3006-E3/45 Real Image
Same model may have multiple batches, images only for reference.

PB3006-E3/45

Part No PB3006-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 30A PB
Datasheet
PB3006-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 35 Weeks
Features Bridge Rectifier Single Phase Standard 600 V Through Hole isoCINK+™ PB
Manufacturer Vishay
Series isoCink+™
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, PB
Case / Package isoCINK+™ PB
Family Name PB3006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number PB3006-E3/45-ND, PB3006-E3/45GI
Quantity per package 1200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888574-PB3006-E3/45
Ultra Librarian 3D Model Ultra Librarian PB3006-E3/45 CAD Model

Description

The PB3006-E3/45 is a single-phase bridge rectifier designed for use in various electronic applications. The Vishay manufactures it.

  • Voltage: 600V
  • Mounting Type: Through-Hole
  • Package: isoCINK+™ PB
  • Maximum Operating Temperature: 150 °C
  • Series: isoCink+™
  • Popularity: Medium
  • Supply and Demand: Limited
