Same model may have multiple batches, images only for reference.

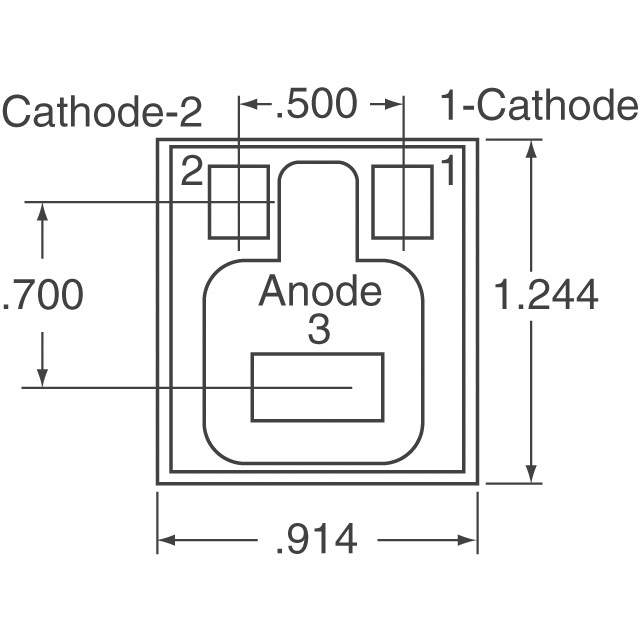

FCSP05H40TR Real Image
Same model may have multiple batches, images only for reference.

FCSP05H40TR

Part No FCSP05H40TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 500MA FLIPKY
Datasheet
FCSP05H40TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel package
Part Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Maximum) @ If 520mV @ 500mA
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 10μA @ 40V
Mounting SMD
Package Flipky
Manufacturer Package Flipky
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 774451-FCSP05H40TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FCSP05H40TR CAD Model

Description

The Vishay Semiconductor Diodes Division FCSP05H40TR is a Schottky diode.

  • Package: Flipky
  • Maximum Forward Voltage: 520mV @ 500mA
  • Maximum Reverse Voltage: 40V
  • Current Average Rectified (Io): 500mA
  • Current Reverse Leakage @ Vr: 10µA @ 40V
  • Operating Temperature: -55°C to 150°C
  • Obsolete: Yes
