The SBS010M-TL-E from ON Semiconductor is a high-performance Schottky Barrier Diode designed for applications requiring low forward voltage drop and high surge current capability. This diode is part of ON Semiconductor's extensive range of semiconductor components, known for their reliability and efficiency.
Key Features
- Low Forward Voltage Drop: The SBS010M-TL-E provides a low forward voltage drop, which translates to reduced power loss and improved efficiency in your circuit.
- High Surge Current Capability: This diode can handle high surge currents, making it suitable for applications that experience transient overcurrent conditions.
- Power Dissipation: With a power dissipation of 500 mW, this diode can sustain moderate levels of power without overheating.
- Low Reverse Leakage Current: The device exhibits minimal leakage current when in the reverse bias condition, ensuring energy conservation and reducing unwanted power drain.

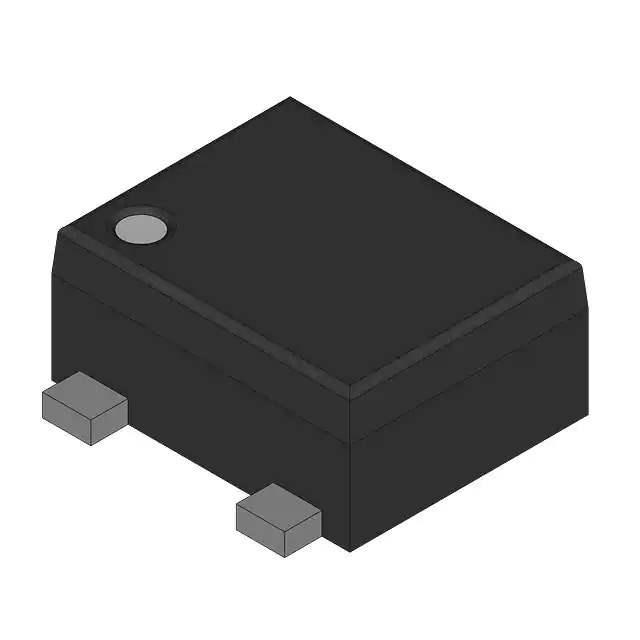

- Compact Package: The SBS010M-TL-E comes in a small SOD-123FL package, making it ideal for space-constrained applications.
Applications
The ON Semiconductor SBS010M-TL-E is versatile and can be used in various applications, including:
- Power supply rectification
- DC-DC converters
- Freewheeling diodes in converters and motor control circuits
- Reverse battery protection
- Portable devices and battery-powered tools
Technical Specifications
Parameter
Value
Package
SOD-123FL
Forward Voltage Drop (Vf)
0.37V @ 1A
Maximum Reverse Voltage (Vr)
100V
Maximum Forward Current (If)
1A
Power Dissipation (Pd)
500mW
Operating Temperature Range
-55°C to +150°C
With its robust design and excellent electrical characteristics, the SBS010M-TL-E Schottky Barrier Diode from ON Semiconductor is a solid choice for engineers and designers looking for a reliable diode for their electronic projects.
