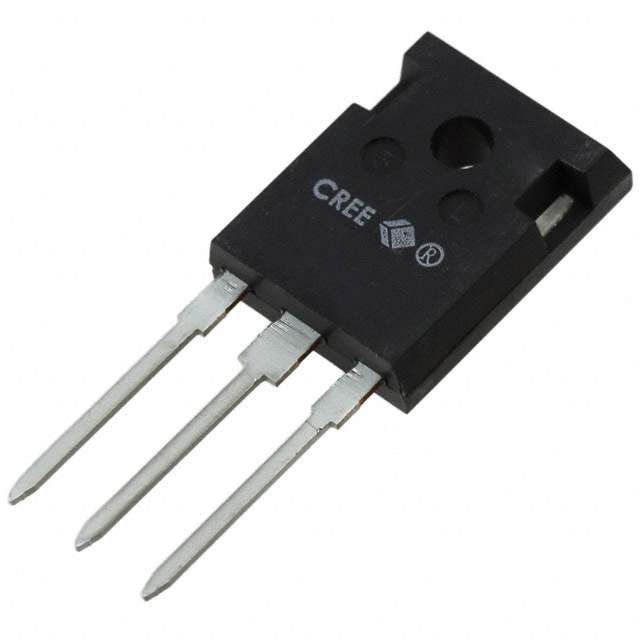

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Silicon Carbide Schottky 650 V 100A (DC) Through Hole TO-247-3
Manufacturer Cree/Wolfspeed
Series Z-Rec®
Package Bulk
Part Status Not For New Designs
Speed No Recovery Time > 500mA (Io)
Mounting Through Hole
Package TO-247-3
Case / Package TO-247-3
Family Name C5D50065
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 30
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865660-C5D50065D
Ultra Librarian 3D Model Ultra Librarian C5D50065D CAD Model

Description

The Cree/Wolfspeed C5D50065D is a high-performance silicon carbide Schottky diode that is part of the Z-Rec® series.

  • Voltage: 650V (Max)
  • Current: 100A (DC)
  • Forward Voltage Drop: Low
  • Recovery Time: None
  • Packaging: Bulk
  • Pieces per Package: 30
  • Mounting Type: Through Hole
  • Lifecycle Status: Not for New Designs
  • ECCN: EAR99
  • Supply and Demand Status: Limited
