4N26-X009T
Same model may have multiple batches, images only for reference.

4N26-X009T

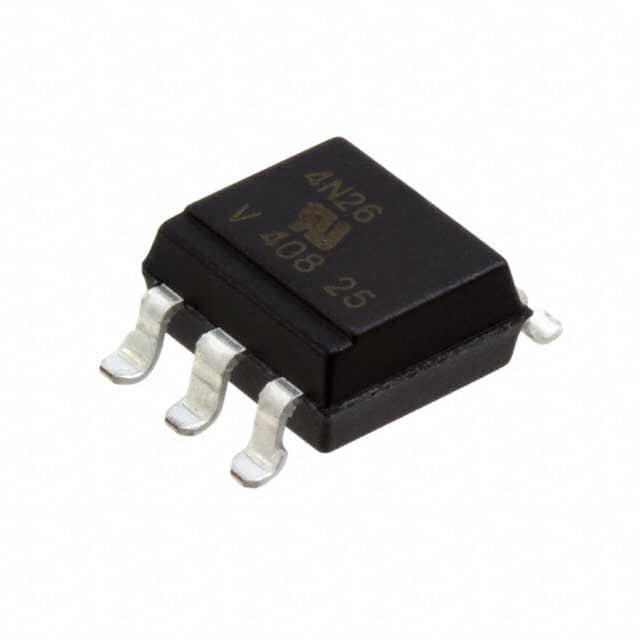

Part No 4N26-X009T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD / Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Datasheet
4N26-X009T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 20% @ 10mA
Rise / Fall Time (Typ) 2µs, 2µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.36V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 500mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number 4N26
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 856202-4N26-X009T
Ultra Librarian 3D Model Ultra Librarian 4N26-X009T CAD Model

Description

The 4N26-X009T is an optoisolator from Vishay.

  • Output Type: Transistor with base
  • Input Type: DC
  • Current Forward (If): 60mA
  • Forward Voltage (Vf): 1.36V
  • Rise and Fall Time: 2μs
  • Current Transfer Ratio: 20% @ 10mA
  • Isolation Voltage: 5000Vrms
  • Maximum Output Voltage: 70V
  • Maximum Vce Saturation: 500mV
  • Mounting: Surface mountable
  • Package: 6-SMD
  • Package Quantity: 1,000 pieces
  • Operating Temperature: -55°C to 100°C
  • Product Status: Active
