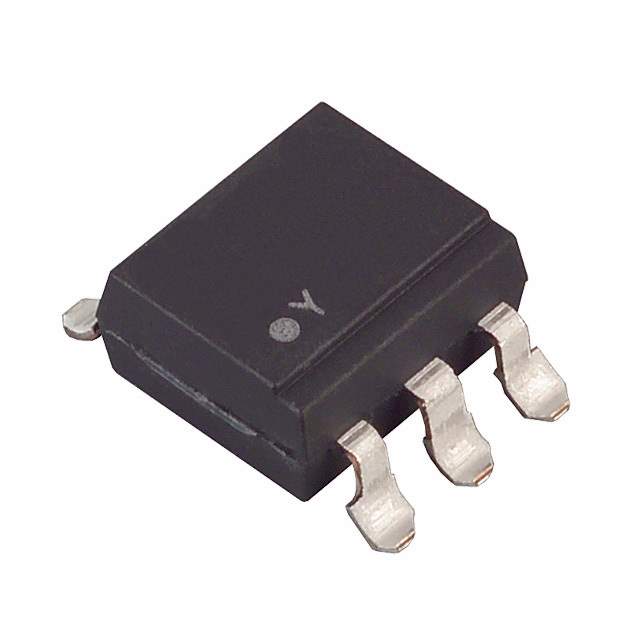

CNY17F-3S-TA1 Real Image
Same model may have multiple batches, images only for reference.

CNY17F-3S-TA1

Part No CNY17F-3S-TA1
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV TRANSISTOR 6-SMD / Optocoupler DC-IN 1-CH Transistor DC-OUT 6-Pin PDIP SMD T/R
Datasheet
CNY17F-3S-TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 100% @ 10mA
Current Transfer Ratio (Maximum) 200% @ 10mA
Rise / Fall Time (Typ) 5μs, 5μs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 150mA
Voltage - Forward (Vf) (Typ) 1.45V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 771694-CNY17F-3S-TA1
Popularity Medium
Supply and Demand Status Limited
Family Name CNY17F-3
Introduction Date April 20, 2003
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CNY17F-3S-TA1 CAD Model

Description

The CNY17F-3S-TA1 is a 6-SMD, Gull Wing packaged Transistor Output Optocoupler that features a high isolation voltage of 5000Vrms and low forward voltage of 1.45V.

  • Output Voltage Maximum: 70V
  • Output Current: Up to 150mA per channel
  • Current Transfer Ratio (Minimum): 100% @ 10mA
  • Current Transfer Ratio (Maximum): 200% @ 10mA
  • Vce saturation: 300mV
  • Rise/Fall Time: 5μs/5μs
  • Family: CNY17F-3
  • Packaging: Reel package
