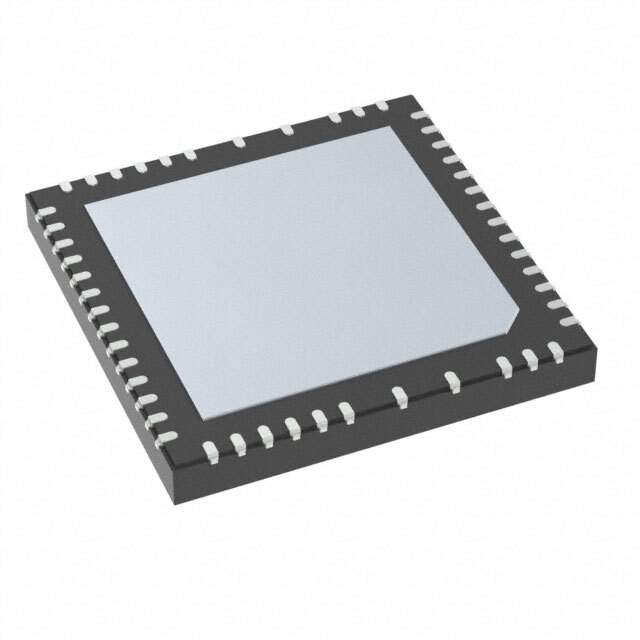

TMC5160-WA Real Image
Same model may have multiple batches, images only for reference.

TMC5160-WA

Part No TMC5160-WA
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRVR BIPOLAR 8-60V 48QFN / Bipolar Motor Driver BCD MOS External Power MOSFETs SPI, Step/Direction 56-QFN (8x8)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Package Tray
Product Status Obsolete
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI, Step/Direction
Technology BCD MOS External Power MOSFETs
Step Resolution 1 ~ 1/256
Applications Industrial
Current - Output 20A
Voltage - Supply 10V ~ 50V
Voltage - Load 10V ~ 55V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 47-VFQFN Exposed Pad
Supplier Device Package 56-QFN (8x8)
Other Names 00-0162,1460-1273
Standard Package 260
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253307-TMC5160-WA
Ultra Librarian 3D Model Ultra Librarian TMC5160-WA CAD Model

Description

The TMC5160-WA is an integrated circuit that is commonly used in industrial applications.

  • Supply and Demand: Limited
  • Features: Fully integrated driver and control power stage
  • Current: 20 A
  • Output Configuration: Half bridge (4)
  • Voltage: 10 V to 55 V
  • Mounting: Surface mount
  • Packaging: Tray
  • Package Type: 47-VFQFN Exposed Pad
