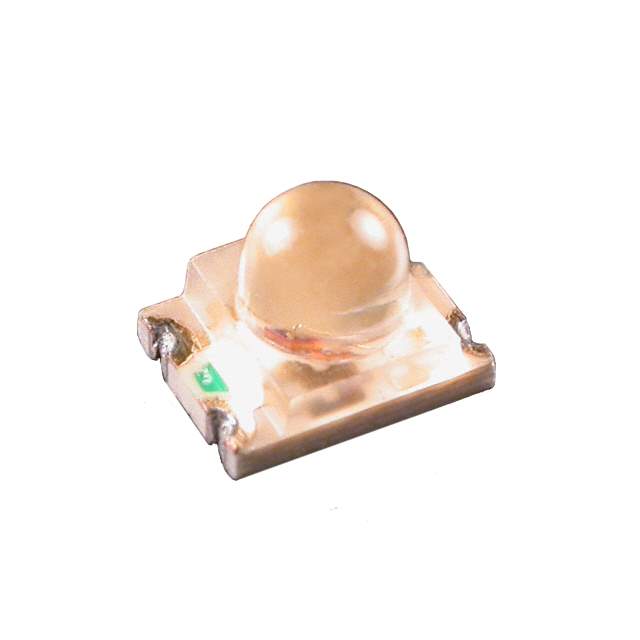

APBD3224ESGC-F01

Name: APBD3224ESGC-F01
Brand: Kingbright
SKU: 1242210
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	APBD3224ESGC-F01
Manufacturer	Kingbright
Catalog	LED Indication - Discrete
Description	LED GREEN/RED CLEAR SMD / Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 1210 (3225 Metric)
Datasheet	APBD3224ESGC-F01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Kingbright
Package	Tape & Reel
Color	Green, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	55mcd Green, 40mcd Red
Lens Style	Round with Domed Top
Lens Size	1.80mm Dia
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red
Current - Test	20mA Green, 20mA Red
Viewing Angle	20°
Mounting	SMD (SMT)
Wavelength - Dominant	568nm Green, 617nm Red
Wavelength - Peak	565nm Green, 627nm Red
Package / Case	1210 (3225 Metric)
Supplier Device Package	SMD
Dimension	3.20mm L x 2.40mm W
Height (Max)	2.40mm
Base Product Number	APBD3224
Other Names	754-1076-2,754-1076-1,APBD3224ESGCF01,754-1076-6
Standard Package	1,500
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242210-APBD3224ESGC-F01
Ultra Librarian 3D Model	Ultra Librarian APBD3224ESGC-F01 CAD Model

Alternative Products

Description

The APBD3224ESGC-F01 is a green and red SMD LED indication component from Kingbright.

Viewing Angle: 20 degrees
Millicandela Rating: 55mcd for green and 40mcd for red
Dominant Wavelength: 568nm for green, and 617nm for red
Forward Voltage: 2.2V for green, and 2V for red
Configuration: configured independently
Lens Style: round with a domed top
Package/Case: 1210 (3225 Metric)
Height: 2.40mm
Lens Color: colorless
Lens Transparency: clear
Suitable for: optoelectronics and LED indication-discrete applications
