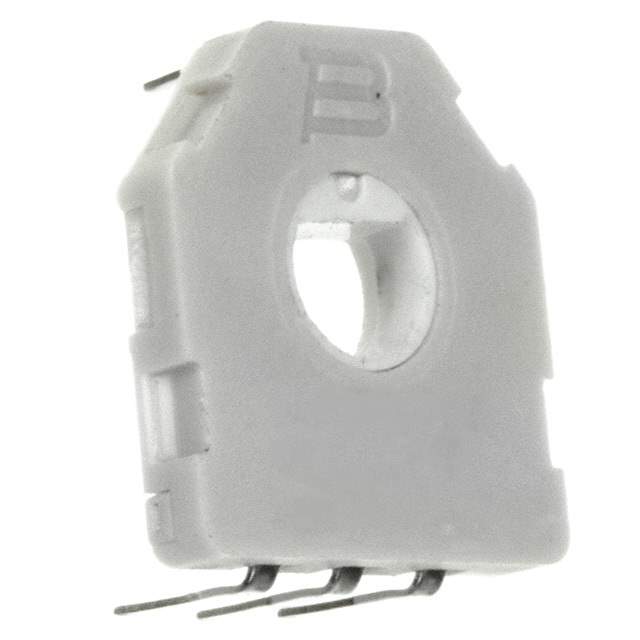

3382H-1-502 Real Image
Same model may have multiple batches, images only for reference.

3382H-1-502

Part No 3382H-1-502
Manufacturer Bourns Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ROTARY 330DEG PC PIN  /  Resistive Sensor Rotary Position Hole for Shaft PC Pin
Datasheet
3382H-1-502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Bourns Inc.
Package Tube
For Measuring Rotary Position
Technology Resistive
Rotation Angle - Electrical, Mechanical 0° ~ 330°, Continuous
Output Resistive
Output Signal Clockwise Increase
Actuator Type Hole for Shaft
Linearity ±2%
Resistance 5 kOhms
Resistance Tolerance ±30%
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 120°C
Package / Case Module, PC Pins
Base Product Number 3382H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 3382H1502
Standard Package 50
Win Source Part Number 1038333-3382H-1-502
Ultra Librarian 3D Model Ultra Librarian 3382H-1-502 CAD Model

Description

The Bourns Inc. 3382H-1-502 is a resistive position sensor designed for use in rotary position measuring applications.

  • Manufacturer: Bourns Inc.
  • Product Name: 3382H-1-502
  • Resistance: 5 kOhms
  • Tolerance: ±30%
  • Linearity: ±2%
  • Rotation Angle: 0° to 330°
  • Package: Module, PC pins
  • Category: Sensors and transducers
  • Alternative Parts (Cross-Reference): SS49E and SS460S
