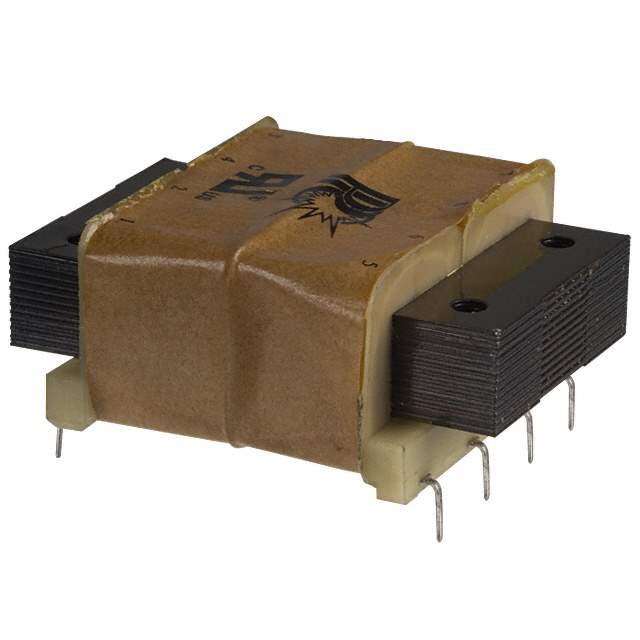

FP56-200 Real Image
Same model may have multiple batches, images only for reference.

FP56-200

Part No FP56-200
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 12VA TH /
Datasheet
FP56-200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Series Flat Pack™
Package Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 28V, Series 56V
Current - Output (Max) Parallel 400mA, Series 200mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 12VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 63.50mm L x 50.80mm W
Height - Seated (Max) 26.97mm
Voltage - Isolation 2000Vrms
Weight 0.688 lb (312.07 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 10422,237-1007,237-1007-NDR,FP56200
Standard Package 1
Win Source Part Number 1059594-FP56-200
Ultra Librarian 3D Model Ultra Librarian FP56-200 CAD Model

Description

The Triad Magnetics 1059594-FP56-200 is a laminated core power transformer with a maximum power of 12 VA.

  • Voltage Isolation: 2000Vrms
  • Primary Voltages: 115V and 230V
  • Secondary Winding Voltage (Parallel): 28V
  • Secondary Winding Voltage (Series): 56V when loaded.
  • Winding: The transformer has dual primary and secondary windings
  • Termination Style: PC pin
  • Package: a box with dimensions of 63.50mm L x 50.80mm W.
  • Series: part of the Flat Pack™ series
  • Weight: 0.688 lb (312.07 g).
  • Mounting: suitable for through-hole mounting
  • Application: ideal for use in power transformers for electronic devices.
