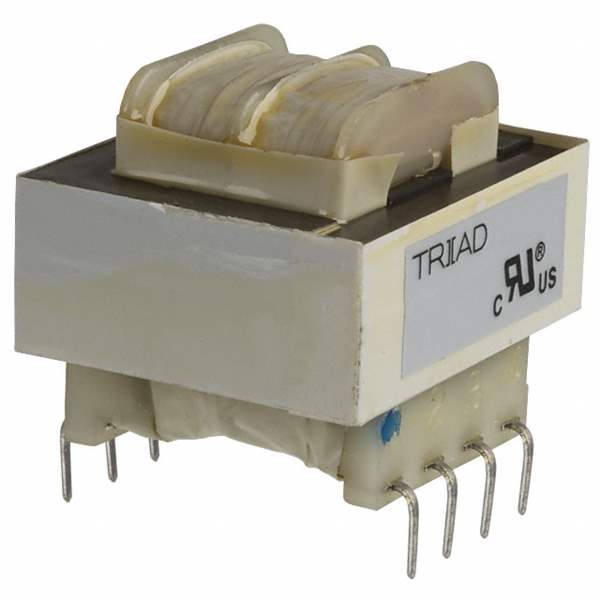

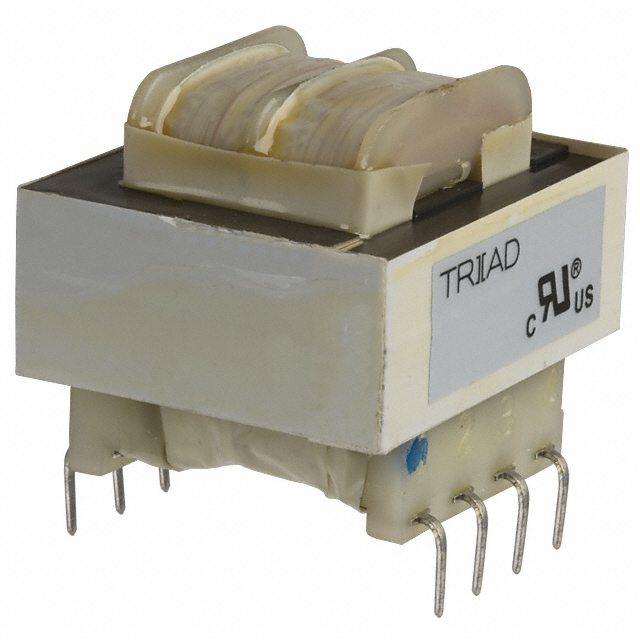

F-359XP

Part No F-359XP
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 10VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Current - Output (Max) Parallel 900mA, Series 450mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 10VA
Mounting Type Chassis Mount
Termination Style PC Pin
Size / Dimension 71.42mm L x 36.50mm W
Height - Seated (Max) 41.28mm
Voltage - Isolation 1500Vrms
Weight 0.688 lb (312.07 g)
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1546258-F-359XP
Ultra Librarian 3D Model Ultra Librarian F-359XP CAD Model

Description

N
