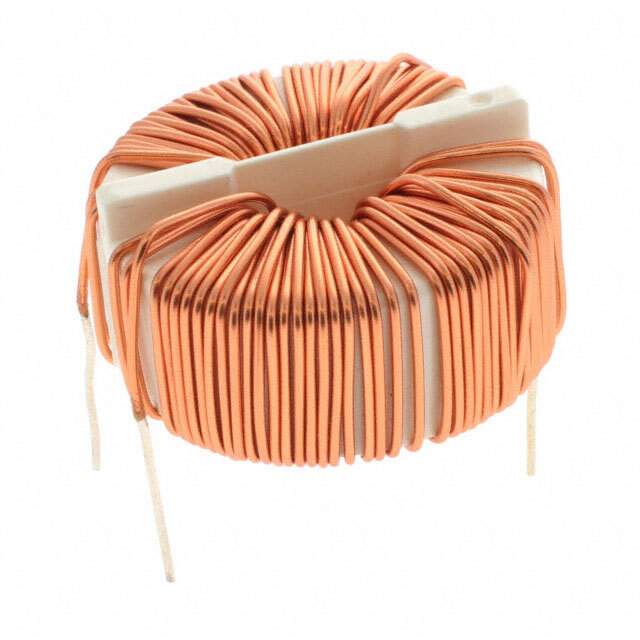

SC-05-D150H Real Image
Same model may have multiple batches, images only for reference.

SC-05-D150H

Part No SC-05-D150H
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 90mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.890" Dia (48.00mm)
Height (Max) 0.984" (25.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-05
Other Names UALSC05D150H00,399-SC-05-D150H
Standard Package 90
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277004-SC-05-D150H
Ultra Librarian 3D Model Ultra Librarian SC-05-D150H CAD Model

Description

The KEMET SC-05-D150H is a common mode choke filter designed to reduce electromagnetic interference (EMI) in power line applications.

  • Maximum AC and DC Voltage Rating: 250V
  • Maximum Current Rating: 5A
  • Package Type: Tray
  • Mounting Type: Through hole
  • Standard Package: 90
  • Filter Type: Power line
  • Height: 0.984 inches
  • Dimension Diameter: 1.890 inches
  • Temperature Range: 25°C to 120°C
  • Inductance: 1.5mH @ 100kHz
  • DC Resistance: 90mOhm
