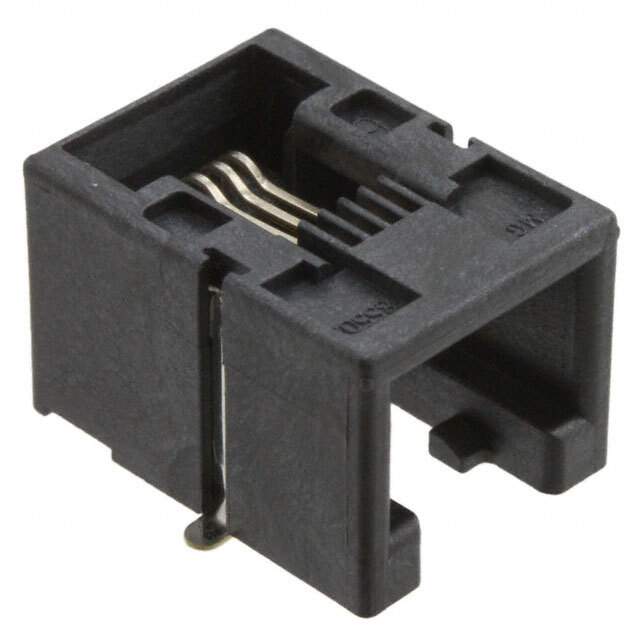

85502-5006 Real Image
Same model may have multiple batches, images only for reference.

85502-5006

Part No 85502-5006
Manufacturer Molex, LLC
Catalog Modular Connectors
Description 6P4C Right Angle Surface Mount UTP RJ11 Modular Jack Connector 85502 85502
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Socket
Contact Material Brass
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin IE
Current Rating 1.5 A
Depth 18.1 mm
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Material Polymer
Insulation Resistance 500 MΩ
Length 16.16 mm
Material Nylon
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 125 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Contacts 6
Number of Ports 1
Number of Positions 6
Orientation Right Angle
Packaging Cut Tape
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Shielding Unshielded
Termination SMD/SMT
Voltage Rating 125 V
Voltage Rating (AC) 125 V
Width 11.5 mm
Win Source Part Number 1010761-85502-5006
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 85502-5006 CAD Model

Description

The Molex, LLC 1010761-85502-5006 is a 6-position, 1.27mm pitch, black socket connector with a female gender.

  • Voltage Rating: 125V
  • Current Rating: 1.5A
  • Contact Material: Brass
  • Contact Plating: Gold
  • Termination: SMD/SMT
  • Housing Material: Polymer
  • Shielding: Shielded
  • Orientation: Right-Angle
  • Packaging: Cut Tape
  • Max Operating Temperature: 85°C
  • Min Operating Temperature: -40°C
  • Mounting: Surface Mount
  • RoHS Compliant: Yes
