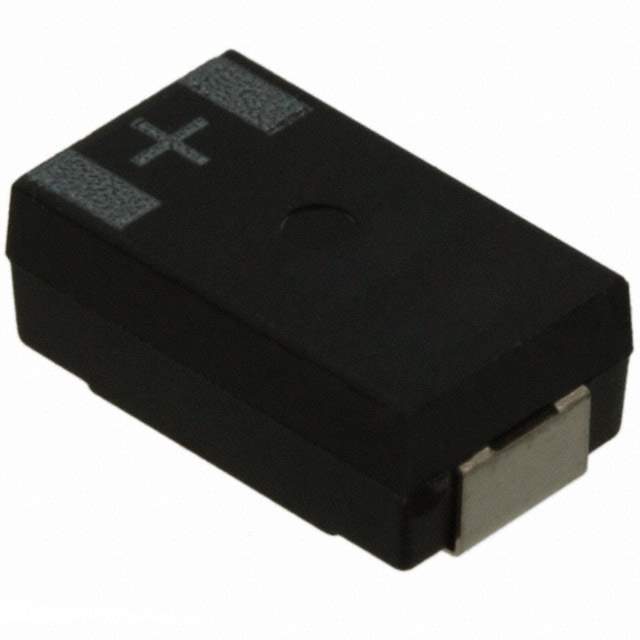

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Reel
Status Obsolete
Type Polymer
Capacitance 150μF
Tolerance ±20%
Voltage - Rated 4V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at High Frequency 3.5A at 100kHz
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.106" (2.70mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1128896-4SW150M
Manufacturer Homepage www.rubycon.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4SW150M CAD Model

Description

The Rubycon capacitor has a capacitance of 150μF and a tolerance of ±20%.

  • Manufacturer: Rubycon
  • Capacitance: 150μF
  • Tolerance: ±20%
  • Rated Voltage: 4V
  • ESR: 9mOhm
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Package: 2917 (7343 Metric)
  • Operating Temperature: -55°C to 105°C
  • Height: 0.106" (2.70mm)
  • Ripple Current: 3.5A @ 100kHz
  • Lifetime: 2000 Hrs @ 105°C
