Same model may have multiple batches, images only for reference.

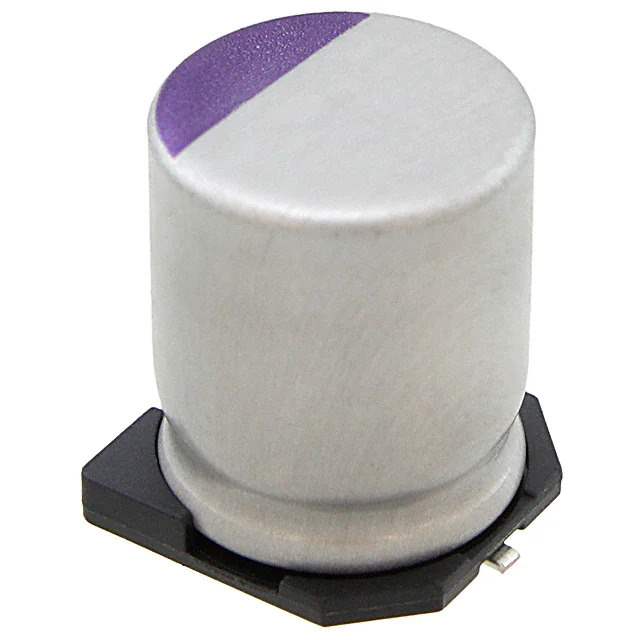

16SVPF560MX Real Image
Same model may have multiple batches, images only for reference.

16SVPF560MX

Part No 16SVPF560MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 16V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series OS-CON™, SVPF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 18mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 3.9 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVPF
Standard Package 500 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 854099-16SVPF560MX
Ultra Librarian 3D Model Ultra Librarian 16SVPF560MX CAD Model

Description

The Panasonic OS-CON™, SVPF Polymer Capacitor is a high-quality electronic component designed for general-purpose applications.

  • Series: OS-CON™, SVPF
  • Package: Tape & Reel
  • Package Quantity: 500 Pieces
  • Capacitance: 560 µF
  • Tolerance: ±20%
  • Voltage Rating: 16V
  • ESR: 18mOhm
  • Lifetime: 5000 hours @ 105°C
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
  • Operating Temperature: -55°C to 105°C
