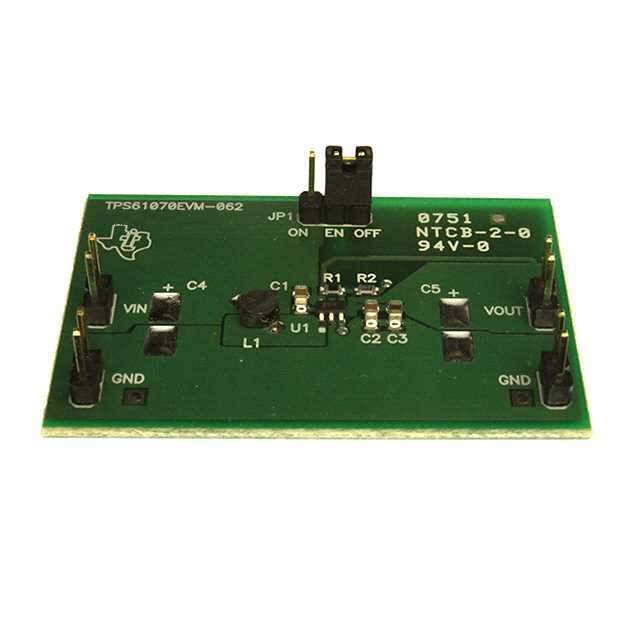

The TPS61070EVM-062 is a comprehensive evaluation module designed to help developers and engineers test the capabilities and features of Texas Instruments' TPS61070, a versatile boost converter integrated circuit. This evaluation module (EVM) provides an effective platform for assessing the TPS61070 in various applications, including battery-powered devices, portable media players, and other low-power handheld electronics.

Key Features of the TPS61070EVM-062

• Adjustable Output Voltage: The EVM allows for an adjustable output voltage range, which can be set from 1.8V to 5.5V, making it highly adaptable for different power requirements.
• High Efficiency: With an efficiency up to 96%, the TPS61070EVM-062 ensures minimal power loss during operation, which is crucial for battery-powered applications.
• Switching Frequency: The module operates at a 1.2MHz fixed switching frequency, allowing for the use of small surface-mount inductors and capacitors, thereby reducing the overall solution size.
• Load Capability: It can deliver up to 600mA of output current at a 5V output with a 3.3V input, showcasing its robust power delivery for various loads.

Design and Layout

The TPS61070EVM-062 features a compact and optimized layout, which is crucial for minimizing noise and interference, especially in sensitive RF or audio applications. The layout is designed to demonstrate good practices in board design, including proper grounding and decoupling techniques.

Easy to Use

The evaluation module is user-friendly, equipped with test points and jumper connectors that make it simple to configure and monitor the circuit's performance. It is designed for easy integration into existing prototypes and projects, facilitating a quick and straightforward evaluation process.

Application Versatility

With its wide input voltage range of 1.8V to 5.5V, the TPS61070EVM-062 is suitable for a variety of power sources, including single-cell Li-Ion batteries, and can be used in a multitude of applications, such as powering LEDs, OLED displays, and other portable devices.

For engineers and designers looking to evaluate the TPS61070 boost converter, the TPS61070EVM-062 provides a reliable and convenient solution, complete with all the necessary features to facilitate a comprehensive assessment of this versatile power management IC.
