Product Overview: TPS54060EVM-590 Evaluation Module

The TPS54060EVM-590 is a fully assembled and tested circuit for evaluating the TPS54060 DC-DC converter from Texas Instruments. This high-performance tool is designed to help both novice and expert engineers in assessing the functionality and features of the TPS54060, a versatile step-down regulator that efficiently manages power within a wide range of applications.

Key Features

• Efficient Power Conversion: The TPS54060EVM-590 is capable of converting a higher voltage input (4.5V to 60V) into a lower voltage output, which is adjustable from 0.8V to VIN, making it suitable for a diverse set of power management tasks.
• Switching Frequency: The device features a switching frequency of 100kHz to 2.5MHz, which can be adjusted via an external resistor or synchronized to an external clock.
• Integrated Features: It includes an array of protection features such as undervoltage lockout, overcurrent protection, and thermal shutdown, ensuring the longevity and reliability of the module.
• Performance Evaluation: Engineers can test the performance of the TPS54060 DC-DC converter under various conditions and loads, thanks to the EVM's flexible design.

Applications

The TPS54060EVM-590 can be used across various applications that require efficient power management solutions, including:

• Industrial Power Supplies
• Automotive Electronics
• Telecommunication Infrastructure
• Consumer Electronics

Design and Layout

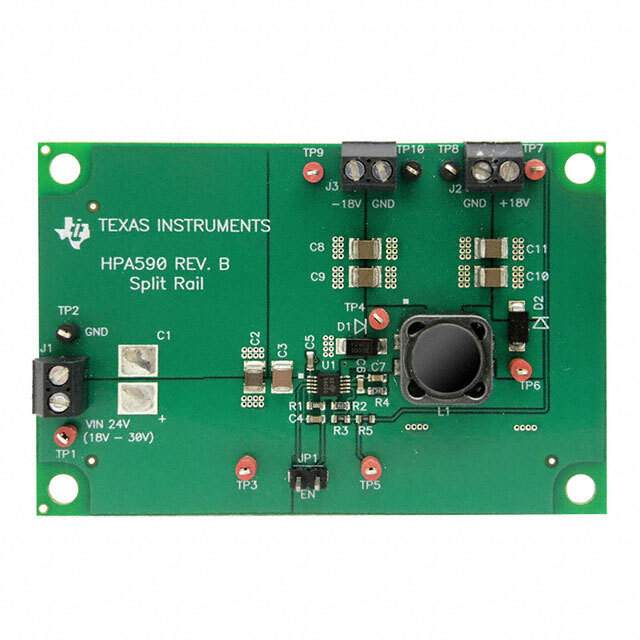

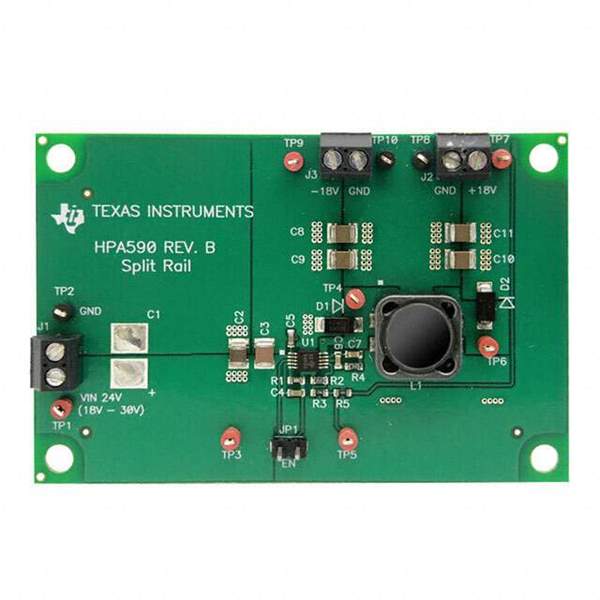

The evaluation module comes with a pre-populated board that demonstrates the small printed circuit board (PCB) areas that may be achieved when designing with the TPS54060 regulator. The layout is optimized for switching noise reduction and includes input and output capacitors to minimize ripple and ensure stable operation.

Easy Integration

With its user-friendly interface, the TPS54060EVM-590 allows for easy access to all the critical test points and signals for comprehensive evaluation. It is designed to facilitate quick and easy experimentation, which accelerates the development cycle and helps bring products to market faster.

Overall, the TPS54060EVM-590 Evaluation Module from Texas Instruments is an indispensable tool for engineers looking to streamline their power supply designs with the TPS54060 DC-DC converter's performance, flexibility, and reliability.
