The TPS25821DSST from Texas Instruments is a sophisticated USB Type-C downstream facing port (DFP) controller that is designed to facilitate the implementation of USB Type-C ports with the power delivery (PD) specification. This controller is an ideal solution for a variety of applications, including laptops, desktops, docking stations, monitors, and other peripherals that require a USB Type-C interface.

The TPS25821DSST integrates multiple functions to ensure a seamless and efficient user experience. It includes a Type-C configuration channel (CC) logic and a power switch for sourcing VBUS. The device is capable of providing up to 3A of output current, which is suitable for most USB Type-C applications. Additionally, it supports USB Battery Charging Specification 1.2 and various other charging protocols to deliver faster charging times.

The device is equipped with an integrated VBUS discharge path, which allows for rapid discharge of VBUS when the port is powered down or when the cable is unplugged, thus enhancing user safety. The TPS25821DSST also features built-in fault protection, including over-current, over-voltage, under-voltage lockout, and thermal shutdown to protect the system from damage during fault conditions.

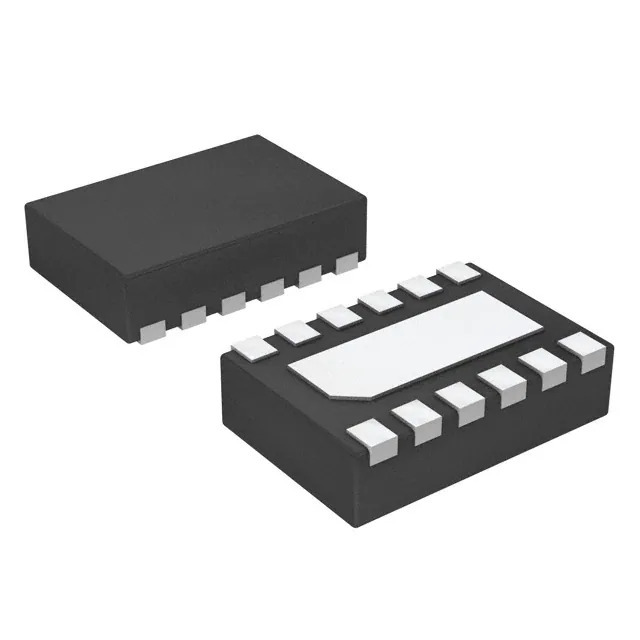

Texas Instruments has designed the TPS25821DSST with a small footprint in mind. The device is available in a 14-pin WSON package, making it suitable for space-constrained applications. It is also characterized for operation over the full industrial temperature range of –40°C to 85°C, ensuring reliable performance in a wide range of environments.

The TPS25821DSST simplifies the implementation of USB Type-C interfaces, providing designers with a flexible and robust solution that meets the requirements of the latest USB specifications. With its integrated features and protections, the TPS25821DSST is an excellent choice for any manufacturer looking to enhance their products with a reliable USB Type-C port.
