NXP PTN3460IBS/F2MP - DisplayPort to LVDS Bridge

The PTN3460IBS/F2MP by NXP Semiconductors is a high-performance, DisplayPort to LVDS bridge device that enables connectivity between a DisplayPort (DP) source and a Low Voltage Differential Signaling (LVDS) display panel. It is designed to meet the needs of modern multimedia applications, providing a seamless interface for video and audio transmission.

Key Features:

• DisplayPort 1.2 Compliant: The device supports a DisplayPort 1.2 input with a high bit rate of up to 5.4 Gbps, ensuring compatibility with the latest multimedia sources.
• LVDS Interface: The bridge translates signals to a dual-channel LVDS output, capable of driving large display panels with resolutions up to Full HD (1920x1080) or WUXGA (1920x1200).
• EDID Support: The PTN3460IBS/F2MP comes with an integrated EDID ROM, simplifying display detection and configuration.
• Color Depth: It supports color depths of 6, 8, and 10 bits per color, providing a wide range of colors and delivering high-quality visual experiences.
• Audio Support: The device also carries audio data, offering an integrated audio decoder that is capable of handling LPCM audio formats.
• Power Management: Advanced power management features, including low standby power, make it an energy-efficient choice for portable and embedded applications.

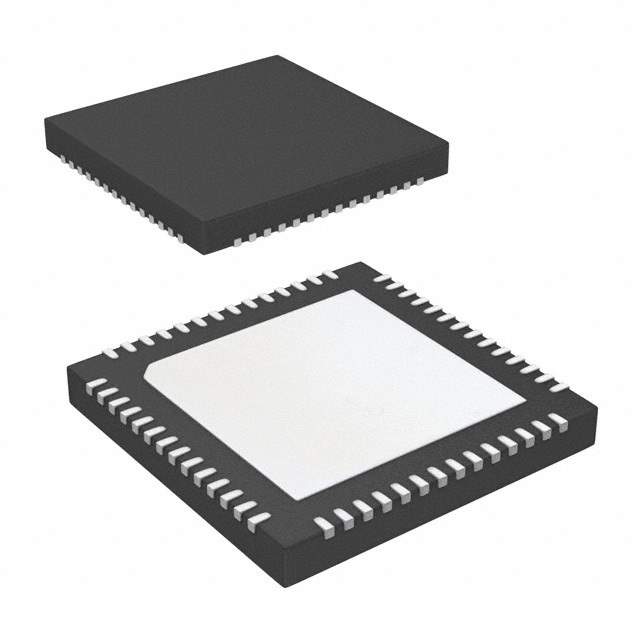

• Compact Package: Housed in a compact HVQFN-56 package, it is suited for applications where space is a premium.

Applications:

The NXP PTN3460IBS/F2MP is ideal for a range of applications, including:

• Notebook and PC monitors
• Industrial and medical displays
• Digital signage and advertising displays
• Televisions and home entertainment systems

With its ability to bridge the gap between the latest DisplayPort technology and traditional LVDS displays, the PTN3460IBS/F2MP from NXP provides a flexible and efficient solution for upgrading existing display infrastructure or designing new, cutting-edge visual systems.
