Product Overview: TMS320F28022PTQ from Texas Instruments

The TMS320F28022PTQ microcontroller is part of Texas Instruments' TMS320F2802x series, which is a subset of the broader C2000™ family of microcontrollers. This product is designed to deliver efficient, high-performance processing capabilities for a wide range of power control applications. It is particularly well-suited for applications requiring a mix of peripherals, PWM outputs, and analog inputs, such as motor control, digital power supplies, and intelligent sensors.

Key Features:

• High-Performance Processing: At the core of the TMS320F28022PTQ is a 32-bit CPU (TMS320C28x) that can run at up to 40 MHz, providing the computational power needed for complex algorithms and control systems.
• Robust Peripherals: This microcontroller includes a variety of on-chip peripherals, such as 12-bit analog-to-digital converters (ADCs), multiple PWM outputs, capture inputs, serial communication ports (SCI, SPI, I2C), and a CAN bus interface, enabling versatile connectivity and control options.
• Advanced Control: The device comes with enhanced PWM capabilities and high-resolution PWMs that are ideal for precision motor control. It also supports advanced features like dead-band delay and trip zone protection for improved safety and performance.
• Memory and Storage: It is equipped with 32KB of flash memory, 6KB of RAM, and additional ROM for storing critical firmware and data, ensuring ample space for complex applications.

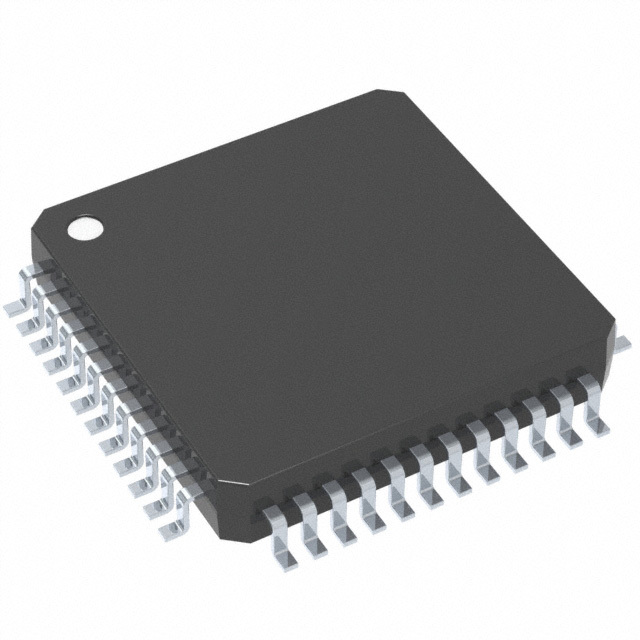

• Integration and Miniaturization: The TMS320F28022PTQ is available in a compact 48-pin LQFP package, which helps to reduce the overall footprint of the electronic system and simplifies PCB design.
• Development Support: Texas Instruments provides comprehensive development tools for the TMS320F28022PTQ, including the Code Composer Studio™ integrated development environment (IDE) and controlSUITE™ software, which offers libraries, examples, and documentation to accelerate development.

Potential Applications:

The versatility of the TMS320F28022PTQ makes it an ideal choice for a variety of applications, including:

• Industrial Drives and Motor Control
• Renewable Energy Systems
• Power Conversion and Inverters
• Automotive Control Systems
• Smart Grid Infrastructure

Overall, the TMS320F28022PTQ from Texas Instruments is a powerful and flexible microcontroller solution that offers a balance of performance, peripherals, and integration to meet the demands of modern power control systems.
