Overview of Texas Instruments TLV2461IDBVR

The TLV2461IDBVR from Texas Instruments is a high-performance, low-power, Rail-to-Rail Input/Output operational amplifier (op-amp) that is part of the TLV246x family of op-amps. This device is designed to operate with a single or dual power supply, making it a versatile choice for a wide range of applications, including battery-powered devices, portable equipment, and industrial controls.

Key Features

• Rail-to-Rail Input/Output: The TLV2461IDBVR offers the convenience of rail-to-rail input and output swing, which maximizes the dynamic range in low voltage applications.
• Low Power Consumption: With a quiescent current of just 500 µA per channel, this op-amp is an excellent choice for power-sensitive applications.
• High Output Drive: Despite its low power consumption, the TLV2461IDBVR can deliver a robust output current, making it suitable for driving heavier loads.
• Wide Supply Range: It can operate from a supply voltage range of 2.7V to 6V, accommodating both single-supply operations and traditional dual-supply configurations.
• High Slew Rate: The device features a slew rate of 1.6 V/µs, which ensures fast response times in fast signal processing applications.

Applications

The TLV2461IDBVR is well-suited for a diverse set of applications, including:

• Portable Audio Devices
• Analog Filters
• Sensor Amplifiers
• Medical Instruments
• Active Filters
• Notebooks and PDAs

Package and Quality

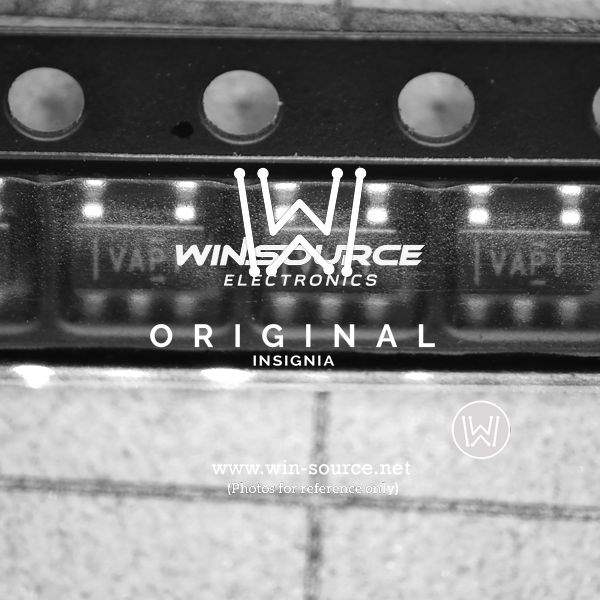

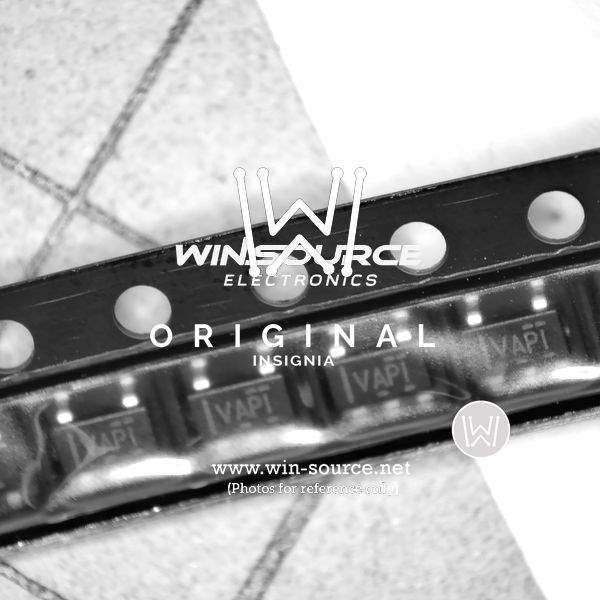

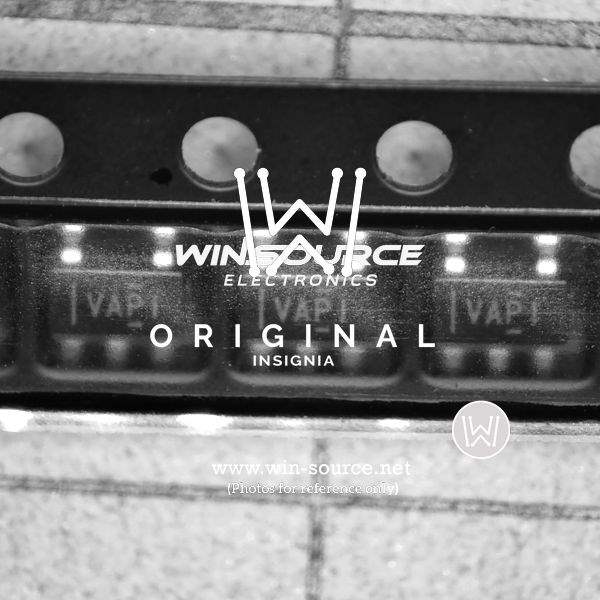

The device comes in a compact SOT-23-5 package, which is ideal for space-constrained applications. It is characterized for operation from –40°C to 125°C, ensuring reliable performance across a broad range of operating conditions. Texas Instruments is known for its commitment to quality, and the TLV2461IDBVR is no exception, meeting stringent industry standards for performance and reliability.

With its combination of low power consumption, wide voltage range, and Rail-to-Rail capability, the TLV2461IDBVR operational amplifier is a smart choice for designers looking to balance power efficiency with performance in their next project.
