Texas Instruments TLC555CDRG4 Timer IC

The TLC555CDRG4 is a highly versatile timer integrated circuit (IC) from Texas Instruments (TI) that is part of the 555 family of devices known for their reliability and ease of use. This particular model is designed using TI's LinCMOS™ technology, which provides significant improvements over standard bipolar 555 timers, including reduced power consumption and increased frequency capabilities.

The TLC555CDRG4 operates at a voltage range of 2V to 15V and can source or sink currents up to 100mA. With such flexibility, this IC can be used in a multitude of applications ranging from precision timing to pulse generation and sequential timing, making it a staple in both hobbyist and professional projects.

One of the key features of the TLC555CDRG4 is its low supply current, which is typically 1mA at VDD = 5V and 2.1mA at VDD = 15V, significantly lower than that of bipolar 555 timers. This makes it an ideal choice for battery-powered or energy-efficient applications. Furthermore, when in the OFF state, the supply current drops to a mere 100nA, which is beneficial for power conservation in standby modes.

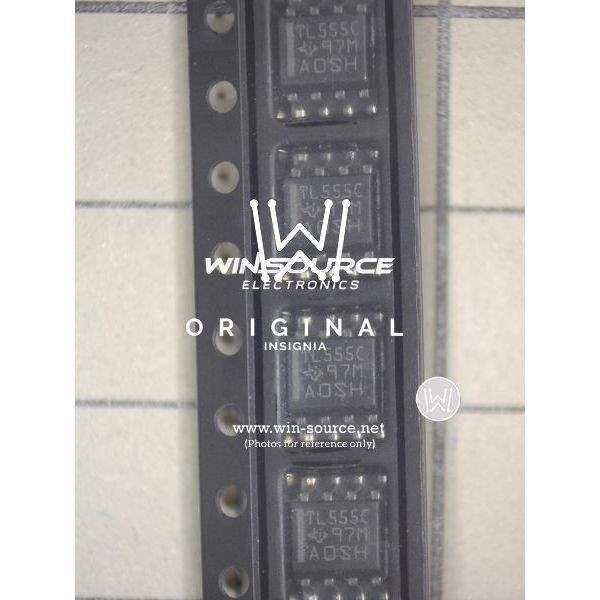

The TLC555CDRG4 is provided in a small-outline 8-pin package, denoted by the 'D' in its name, and the 'RG4' suffix indicates that it comes in a tape and reel packaging format, which is suitable for automated assembly processes. The device's output is capable of driving TTL or CMOS loads, and its external components are both interchangeable and adjustable, allowing for precise timing configurations.

With its high input impedance, direct interface to CMOS, NMOS, and TTL, and the ability to operate in astable or monostable modes, the TLC555CDRG4 is a highly adaptable component that can be incorporated into a wide array of electronic systems. It is often used in timers, pulse generation circuits, LED flashers, alarms, tone generation, frequency division, and as a part of microcontroller-based systems.

Overall, the TLC555CDRG4 from Texas Instruments is a robust and efficient timer IC that offers designers a low-power, flexible solution for a variety of timing and pulse-related applications.
