Same model may have multiple batches, images only for reference.

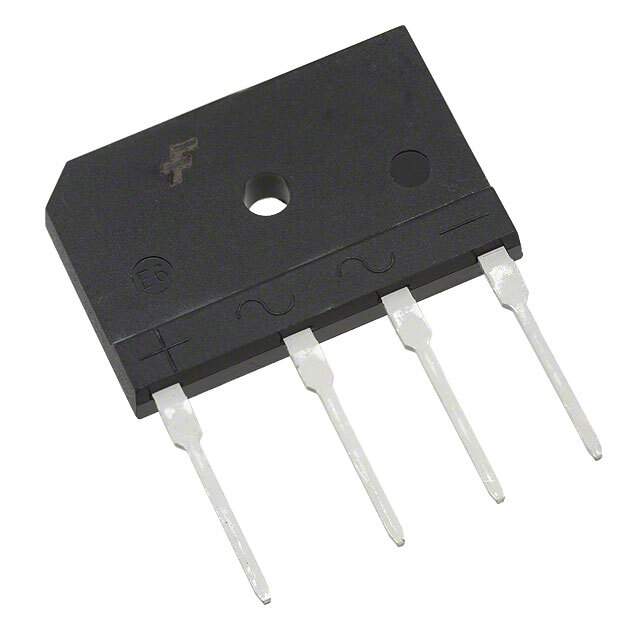

DFB2040 Real Image
Same model may have multiple batches, images only for reference.

DFB2040

Part No DFB2040
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 400V 20A TS-6P / Diode Rectifier Bridge Single 400V 20A 4-Pin SIP Tube
Datasheet
DFB2040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 20A
Current - Reverse Leakage @ Vr 10μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, TS-6P
Manufacturer Package TS-6P
Win Source Part Number 774438-DFB2040
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,200
Family Name DFB2040
Introduction Date April 01, 2010
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian DFB2040 CAD Model

Description

The DFB2040 is a standard technology single-phase diode manufactured by Fairchild/ON Semiconductor.

  • Current Rating: 20A
  • Voltage Rating: 400V
  • Package: 4-SIP, TS-6P
  • Operating Temperature Range: -55°C to 150°C
  • Applications: Power supplies, rectifiers, and inverters
  • Alternatives: TS20P04G, TS20P04G X0, TS20P04G D2, TS20P04G X2
  • Introduction Date: April 1, 2010
  • Estimated EOL Date: 2029
  • Halogen-Free: No
