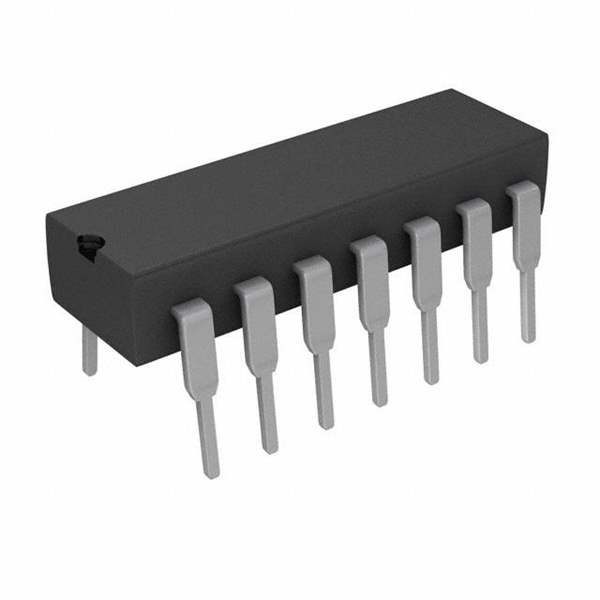

Product Overview: TLC354CN from Texas Instruments

The TLC354CN is a high-quality integrated circuit developed by the renowned electronics manufacturer, Texas Instruments. Known for its reliability and performance, this particular product is part of the LinCMOS™ family, which combines the advantages of both CMOS and bipolar transistors to offer superior electrical characteristics.

Key Features

• Quad Operational Amplifiers: The TLC354CN features four independent operational amplifiers (op-amps) on a single chip, making it an efficient choice for space-constrained applications.
• Low Power Consumption: With a typical low power consumption of just 1.4 mA per amplifier, this device is ideal for battery-powered and energy-saving circuits.
• Wide Range of Supply Voltages: It operates over a wide range of supply voltages from 3 V to 16 V, providing flexibility for various power requirements.
• High Input Impedance: The device boasts a high input impedance of 10^12 ohms, ensuring minimal loading on the input source.
• Output Short-Circuit Protection: The TLC354CN includes output short-circuit protection, enhancing its durability and reliability in complex electronic systems.

Applications

The TLC354CN is versatile and can be used in a variety of electronic applications, such as:

• Multivibrators
• DC amplification blocks
• Analog filters
• Signal conditioning
• Power supplies
• And many other electronics circuits where multiple op-amps are required.

Quality and Support

As with all Texas Instruments products, the TLC354CN is manufactured to the highest quality standards. The company provides extensive technical support and documentation, ensuring that designers and engineers can effectively incorporate the TLC354CN into their projects with confidence.

Whether you're designing consumer electronics, industrial control systems, or experimenting with new circuit designs, the TLC354CN from Texas Instruments offers the performance, reliability, and quality that professionals expect.
