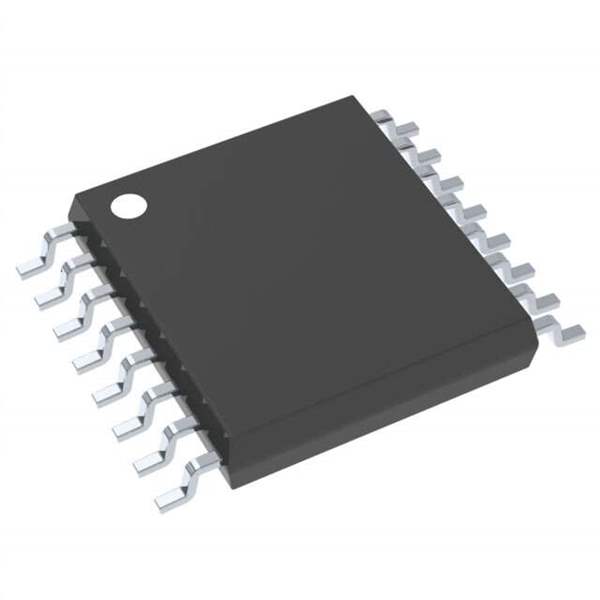

The TCA9554PW from Texas Instruments is a sophisticated and highly integrated I/O expander that enhances the capabilities of microcontroller-based systems. This versatile component operates under the control of a host controller via the I²C bus or SMBus, providing an additional eight I/O ports. The TCA9554PW is housed in a compact TSSOP package, making it an ideal solution for space-constrained applications.

Key Features

• I²C to Parallel Port Expander: This device offers an easy way to expand the available I/O ports of a microcontroller or processor via the I²C bus with minimal pin count.
• Low Power Consumption: Designed for power-sensitive applications, the TCA9554PW operates with low power consumption, making it suitable for battery-operated and portable devices.
• Interrupt Output: An interrupt output informs the host controller of changes in the input ports without the need for constant polling, thus reducing system power consumption and improving efficiency.
• Configurable Polarity: The polarity of the I/Os can be inverted if required, providing flexibility for interfacing with different peripherals.
• Broad Voltage Range: The device supports a wide range of supply voltages from 2.3V to 5.5V, accommodating various logic levels and ensuring compatibility with diverse systems.

Applications

The TCA9554PW is suitable for an array of applications, including:

• Server motherboards
• Mobile phones
• Personal electronics
• Industrial control
• Home automation systems

Technical Specifications

• Package: TSSOP (PW)
• Interface: I²C, SMBus
• Number of I/O: 8
• Voltage Range: 2.3V to 5.5V
• Operating Temperature Range: -40°C to 85°C

Overall, the TCA9554PW is a highly reliable and functional component that extends the I/O capabilities of microcontroller-based systems while maintaining low power consumption and a small footprint. Its ease of use, combined with its powerful features, makes it an excellent choice for designers looking to optimize their embedded systems.
