The MAX7311AUG+ is a versatile and efficient I/O port expander from Maxim Integrated, designed to provide additional digital I/O interfaces to a microcontroller or processor via the I²C-compatible bus. This powerful component is particularly useful in applications where the number of I/O pins on the microcontroller is insufficient for the needs of the system.
The device operates with a supply voltage ranging from 2.7V to 5.5V, making it suitable for a wide array of applications, from battery-powered devices to industrial control systems. It features 16 I/O ports which are configurable as either inputs or outputs, providing a high level of flexibility for interfacing with sensors, switches, LEDs, and other peripherals.
Each I/O port can be controlled individually by the host processor, and the MAX7311AUG+ offers built-in polarity inversion registers, which simplify the design process by allowing the user to invert the polarity of the input port data without requiring additional hardware. This can be particularly useful in applications where the logic levels of the connected devices are inverted.
The device also boasts transition detection on the inputs, which can notify the host processor of changes without the need for constant polling, thus reducing the processor's workload and improving overall system efficiency. Additionally, the MAX7311AUG+ supports hot insertion, meaning it can be added to a system without needing to power down the system, a feature that is extremely beneficial in mission-critical applications where downtime must be minimized.

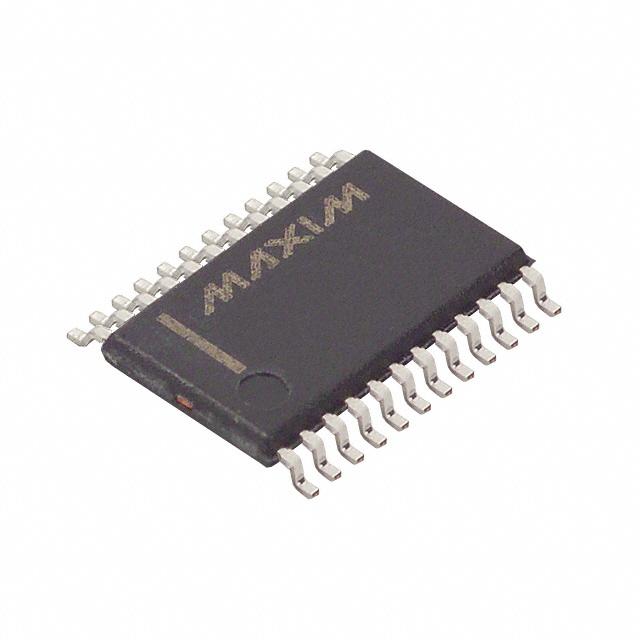

Packaged in a 24-pin TSSOP, the MAX7311AUG+ is compact and suitable for space-constrained applications. Its operating temperature range of -40°C to +125°C ensures reliable performance in extreme environments, making it an ideal choice for automotive, industrial, and many other rugged applications.
Maxim Integrated's commitment to quality and reliability is evident in the MAX7311AUG+, which is designed to meet the stringent requirements of a wide range of applications, offering designers a high-performance solution for expanding I/O capabilities.
