SN74LVC1T45YZTR Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs

The SN74LVC1T45YZTR from Texas Instruments is a versatile, high-speed logic device designed to address the challenges of voltage-level translation in multi-voltage systems. This single-bit non-inverting bus transceiver uses two separate configurable power-supply rails, enabling the translation of signals between different voltage nodes within a system.

Featuring a wide V_CCA range of 1.65V to 3.6V and an even broader V_CCB range of 1.65V to 5.5V, the SN74LVC1T45 allows for seamless communication between devices operating at different voltage levels. This flexibility makes the component ideal for interfacing between modern low-voltage microprocessors or microcontrollers and legacy devices or peripheral components that require higher voltage levels.

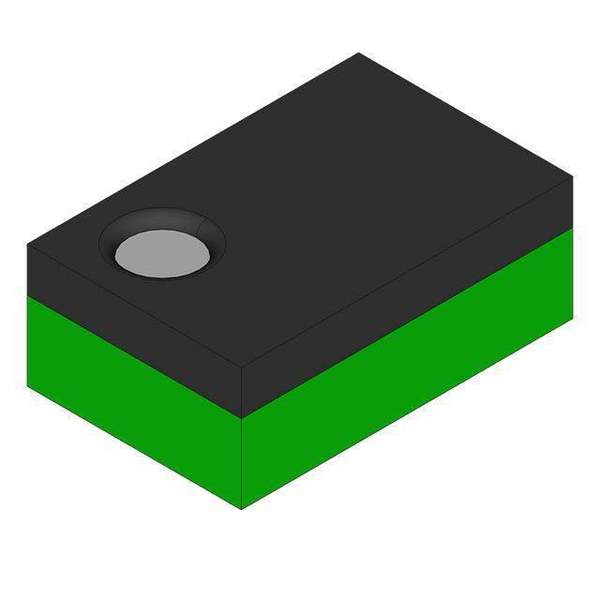

The SN74LVC1T45YZTR comes in a compact 6-pin YZP package, which is optimized for minimal space on a PCB. Despite its small size, it is capable of supporting data rates up to 420 Mbps, making it suitable for high-speed signal transfer applications. The device also includes 3-state outputs which ensure that multiple devices can share a common data line without interference.

One of the key features of the SN74LVC1T45 is its direction control (DIR) input, which simplifies the design of bidirectional bus systems by allowing the data flow direction to be easily managed. The output-enable (OE) input can disable the output to allow the bus line to be in a high-impedance state, further enhancing the device's flexibility in bus management.

Designed with the robustness expected from Texas Instruments, the SN74LVC1T45YZTR offers excellent ESD protection, with ±8 kV Human-Body Model (HBM) and ±500 V Charged-Device Model (CDM). This makes it a reliable choice for applications where electrostatic discharge could pose a risk to the integrity of the system.

In conclusion, the SN74LVC1T45YZTR is a highly functional, reliable solution for voltage level translation in mixed-voltage environments. Its ability to interface easily between different voltage domains, coupled with its high-speed data transfer capabilities, makes it a valuable component in a wide range of electronic systems, from consumer electronics to industrial controls.
