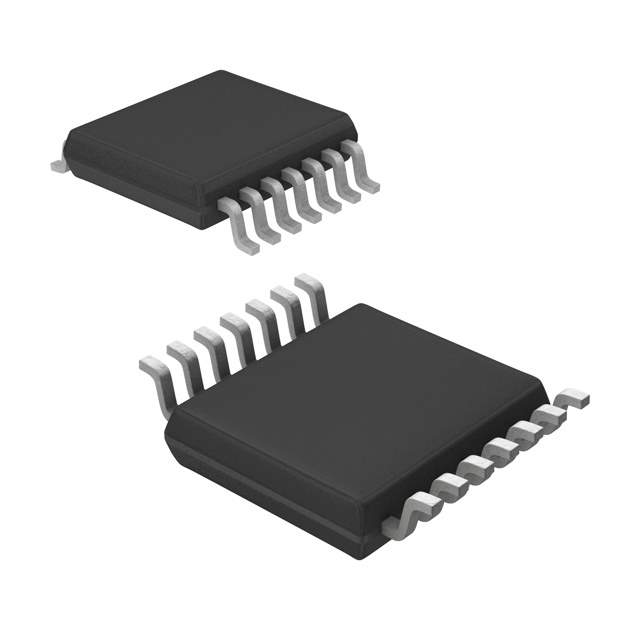

Product Overview: SN74HC4020PWRG4

The SN74HC4020PWRG4 is a high-performance, 14-stage binary counter integrated circuit (IC) from Texas Instruments, designed with the precision and reliability expected from a leading manufacturer in the semiconductor industry. This advanced counter IC is part of the 'HC' family, which signifies the use of silicon-gate CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of standard CMOS integrated circuits.

Featuring a wide operating voltage range from 2V to 6V, the SN74HC4020PWRG4 can be integrated into a variety of digital applications. Its robust design allows it to interface with both CMOS and LSTTL logic levels, ensuring compatibility with a broad array of existing systems and facilitating its use in mixed-logic environments.

Key Features:

• Versatile Voltage Range: Operates efficiently across a voltage range of 2V to 6V, accommodating various logic level requirements.
• High-Speed Performance: Utilizes silicon-gate CMOS technology to deliver fast operation that rivals traditional LSTTL speeds.
• Low Power Consumption: Designed to minimize power usage, making it ideal for battery-powered and energy-sensitive applications.
• Counter Configuration: Includes a 14-stage binary counter, providing significant counting capability for complex digital tasks.
• Output Frequency Division: The frequency of the oscillator input is divided by 2ⁿ, where 'n' is the number of stages, offering flexible frequency division options.
• Wide Temperature Range: Operates between -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
• Package Type: Available in a TSSOP (Thin Shrink Small Outline Package) form, the SN74HC4020PWRG4 is designed for space-saving in PCB designs.

Applications:

The SN74HC4020PWRG4 is adept for use in a wide range of electronic applications. Its primary function as a counter makes it suitable for:

• Frequency dividers and timers
• Real-time clocks
• Sequential state machines
• High-speed A/D converters
• General-purpose counting applications

With its combination of speed, power efficiency, and robust functionality, the SN74HC4020PWRG4 from Texas Instruments is an excellent choice for designers looking to implement reliable counting solutions in their digital systems.
