Product Overview: SN74ALVCH162601DLR from Texas Instruments

The SN74ALVCH162601DLR is a high-performance, 18-bit universal bus driver from Texas Instruments, designed with cutting-edge technology to ensure fast and reliable data transmission in a wide array of digital systems. This device is part of the advanced low-voltage CMOS (ALVC) family, which is renowned for its low operational voltage and minimal power consumption without sacrificing speed and functionality.

Key Features

• Technology: Manufactured using advanced CMOS technology, the SN74ALVCH162601DLR offers a perfect balance between power efficiency and high-speed operation, allowing for seamless integration into modern digital applications.
• Logic Type: Universal Bus Driver, which means it can be used in various applications, providing flexibility and adaptability to system designers.
• Operating Voltage: Designed to operate at 2.3V to 3.6V, making it ideal for low-voltage applications that require energy efficiency.
• Speed: Provides high-speed data transfer with a maximum clock frequency, ensuring rapid data handling in critical applications.
• I/O Ports: Features 18-bit I/O ports with three-state outputs, which can be used as inputs or outputs without the need for external pull-up or pull-down resistors, simplifying board design and reducing component count.
• Bus-Hold Data Inputs: Eliminates the need for external pull-up/pull-down resistors, thus reducing system complexity and cost.

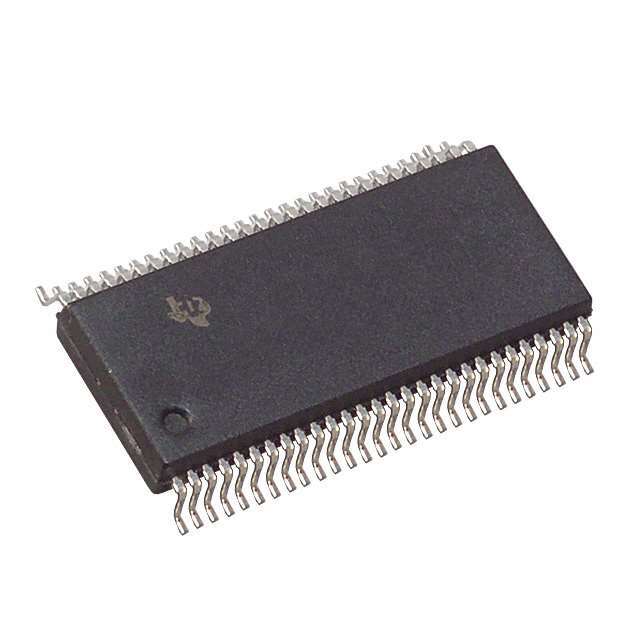

• Package: The device comes in a surface-mount package, specifically a 56-Pin SSOP (DLR), which is suitable for automated assembly processes and saves board space.
• RoHS Compliant: Adheres to the Restriction of Hazardous Substances Directive, making it environmentally friendly and suitable for use in a wide range of markets.

Applications

The versatility of the SN74ALVCH162601DLR makes it an excellent choice for a variety of applications, including:

• High-speed data paths and buffering in servers and telecommunications
• Bus interface or signal buffering between different voltage domains
• Memory driver or interconnect for high-performance computing
• General-purpose logic applications where low power consumption is essential

Texas Instruments' commitment to quality ensures that the SN74ALVCH162601DLR provides the performance and reliability required for today's demanding electronic systems. Whether you're designing for consumer electronics or industrial applications, this universal bus driver is engineered to meet your needs.
