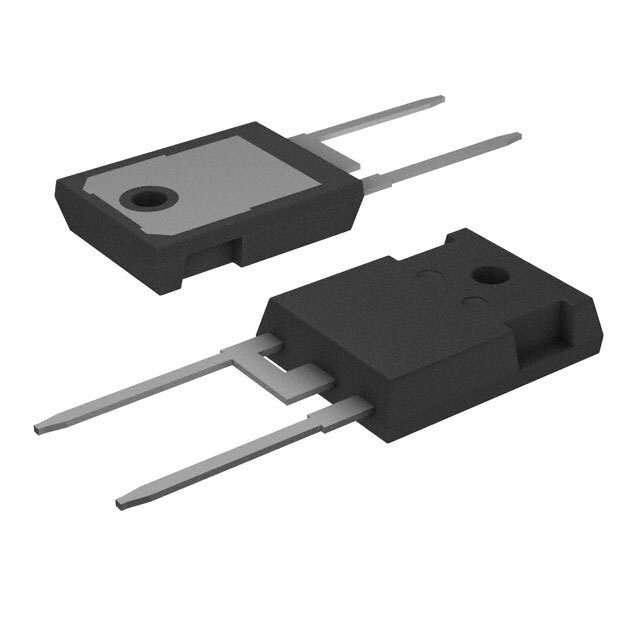

SDUR1560W SMC Diode Solutions
Same model may have multiple batches, images only for reference.

SDUR1560W

Part No SDUR1560W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V TO247AC
Datasheet
SDUR1560W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) -
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AC
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SDUR15
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368222-SDUR1560W
Ultra Librarian 3D Model Ultra Librarian SDUR1560W CAD Model

Description

The SDUR1560W is a standard diode from SMC Diode Solutions.

  • Manufacturer: SMC Diode Solutions
  • Package / Case: TO-247-2
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Speed: Fast Recovery =
  • Reverse Recovery Time (trr): 50ns
  • Current - Reverse Leakage @ Vr: 10μA @ 600V
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Applications: Rectifier
