The SN65HVD70DR is a robust, industrial-grade RS-485 transceiver from Texas Instruments, designed to facilitate reliable communication in demanding environments. This high-speed interface device is capable of data transmission rates up to 50 Mbps, making it an excellent choice for high-speed data acquisition, multipoint data transmission systems, and various industrial applications.

Engineered for differential data transmission, the SN65HVD70DR ensures improved signal quality and noise immunity. This is particularly beneficial in environments where long cable lengths and electromagnetic interference (EMI) can adversely affect signal integrity. The device's differential signaling provides a balanced transmission line that reduces susceptibility to EMI, thus enhancing data reliability.

The SN65HVD70DR operates over a wide supply voltage range from 3.3V to 5V, which allows for flexible integration into various system designs. It also features a low-power standby mode, which significantly reduces power consumption when the device is not actively transmitting or receiving data, making it suitable for power-sensitive applications.

Safety and reliability are at the forefront of the SN65HVD70DR's design. It includes fail-safe receivers that ensure a logic-high output when inputs are open, shorted, or idle, thus preventing data corruption during fault conditions. Additionally, the device is characterized for operation from -40°C to 125°C, enabling its use in extreme temperature environments.

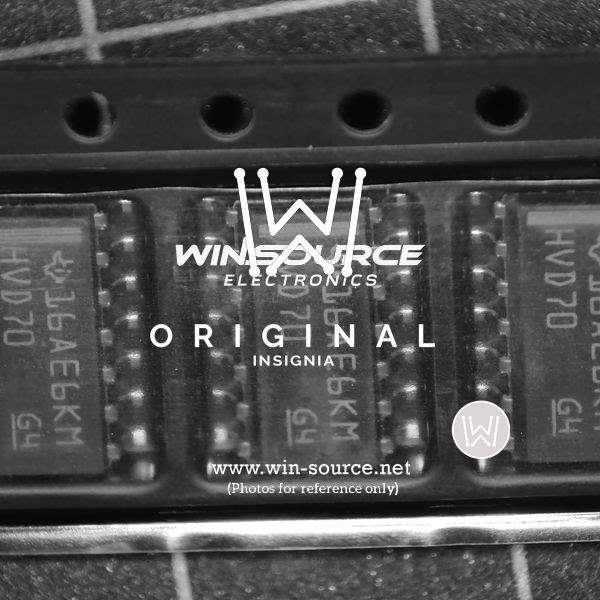

The SN65HVD70DR comes in a compact 8-pin SOIC package, providing a space-efficient solution for PCB layouts. It is also characterized for meeting the stringent requirements of the IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) standards, ensuring robustness against transient voltage spikes and electrical fast transients commonly found in industrial settings.

In summary, the SN65HVD70DR from Texas Instruments is a high-performance RS-485 transceiver that provides reliable, high-speed data communication with advanced protection features. Its robust design and versatile capabilities make it an ideal choice for a wide range of industrial applications where data integrity and system uptime are critical.
