The REF2030AIDDCR is a high-precision, low-power voltage reference from Texas Instruments, designed to provide a stable and accurate reference voltage for precision analog circuits. This device is part of TI's REF20xx family of low-drift, low-power, single-supply, precision voltage references.
Featuring a typical temperature drift of just 8ppm/°C and an initial accuracy of 0.05%, the REF2030AIDDCR ensures reliable performance in a variety of demanding applications, including data acquisition systems, medical instruments, and industrial process controls. Its low dropout voltage and wide supply voltage range from 3V to 18V make it versatile for both battery-powered and line-powered systems.
The REF2030AIDDCR offers a fixed 3.0V output voltage, which is sourced through a high-impedance buffer that can deliver up to 10mA of output current. This capability allows the device to drive the reference input of multiple analog-to-digital converters (ADCs), digital-to-analog converters (DACs), or other analog devices simultaneously without the need for an external buffer.

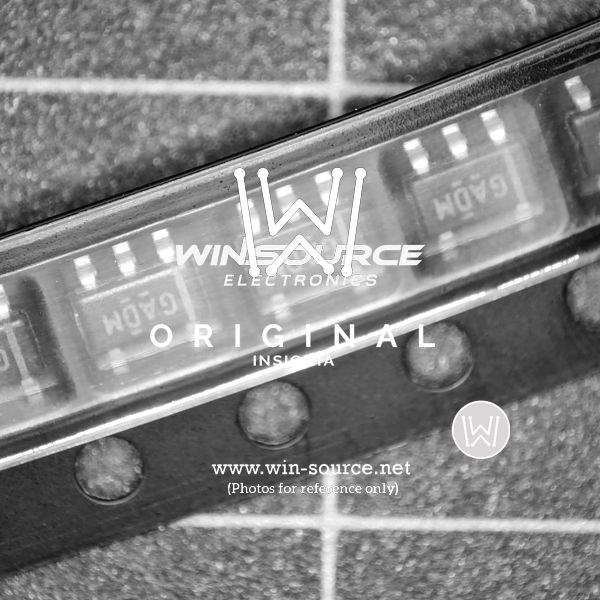

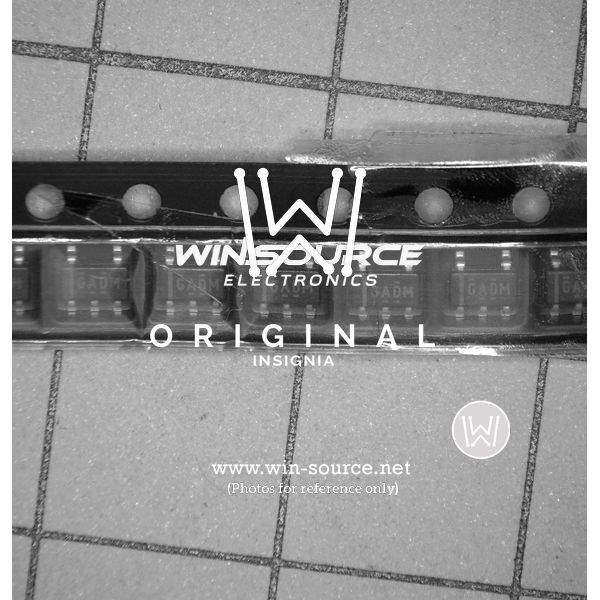

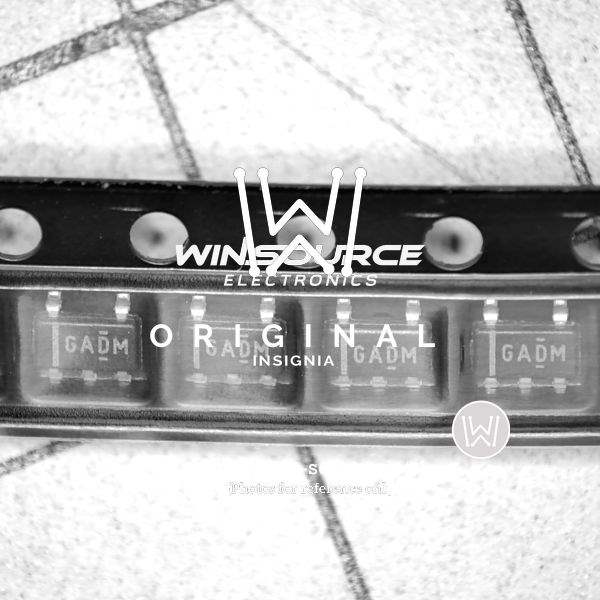

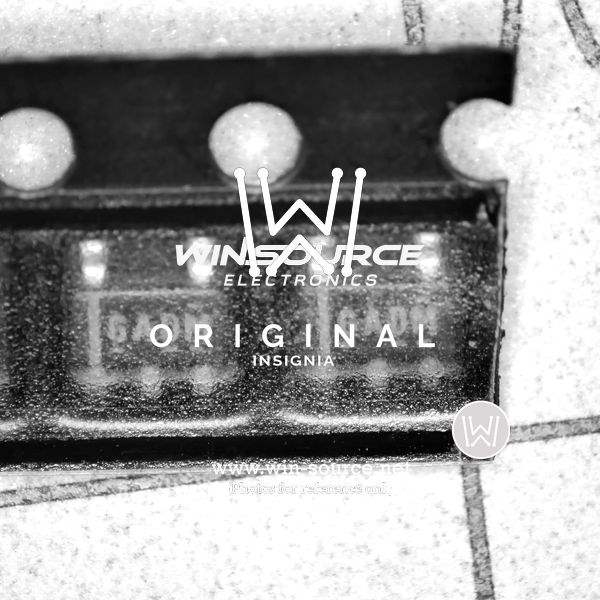

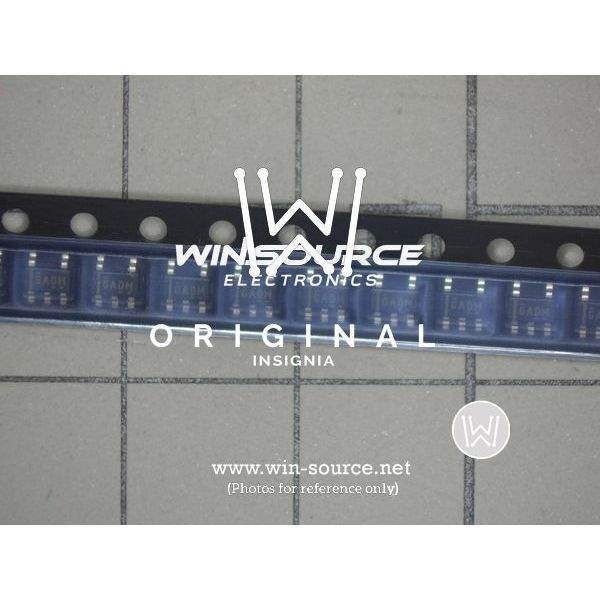

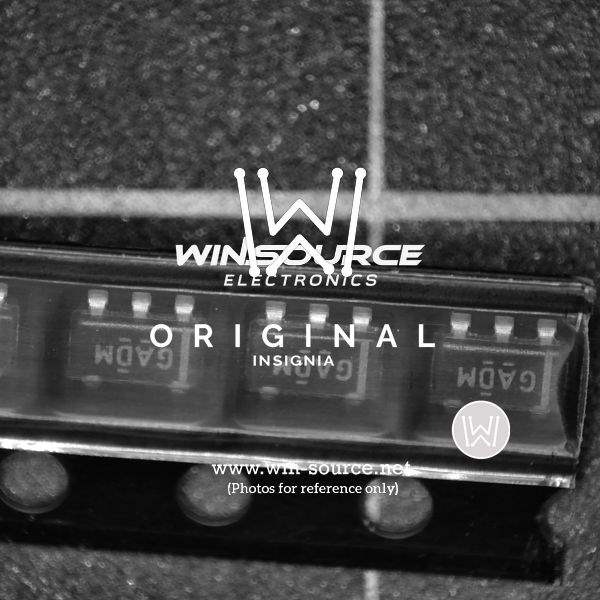

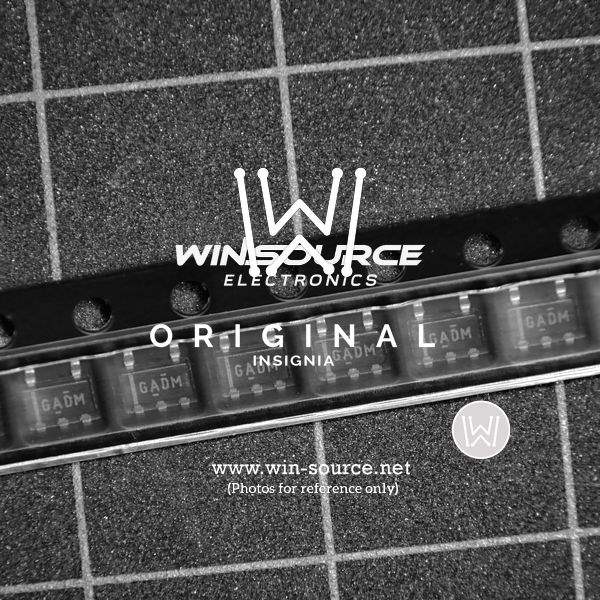

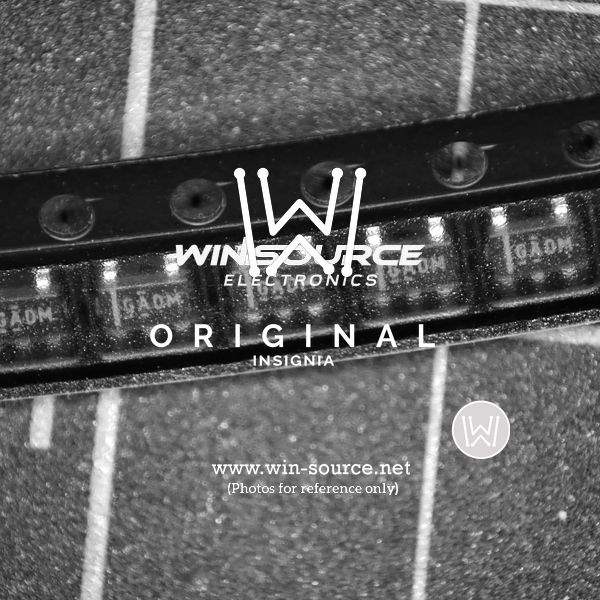

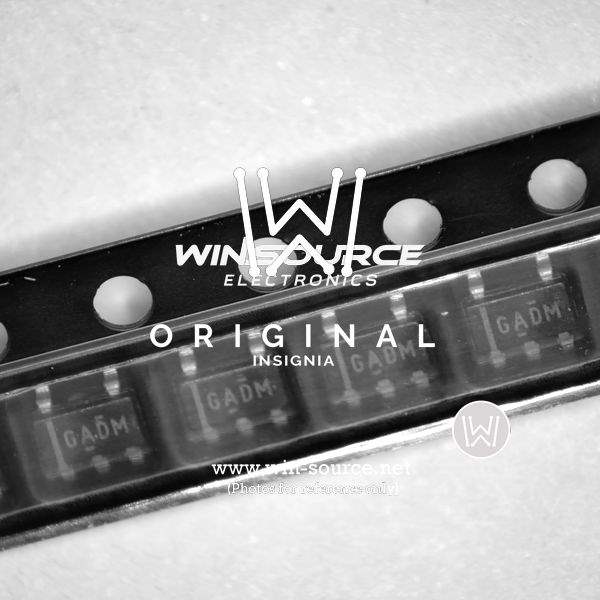

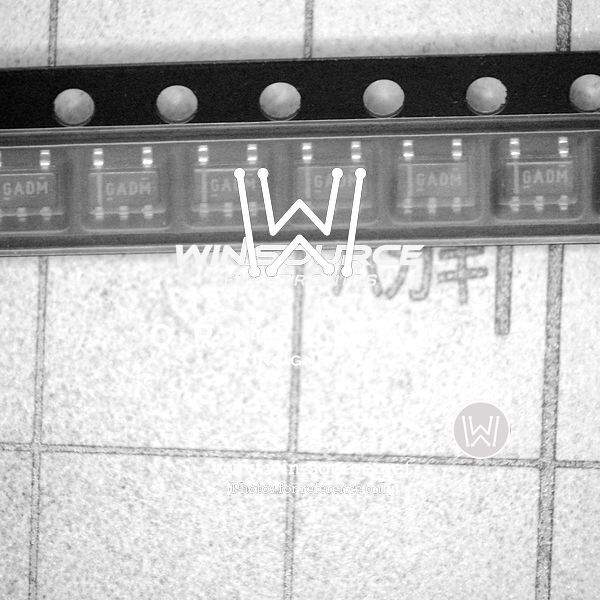

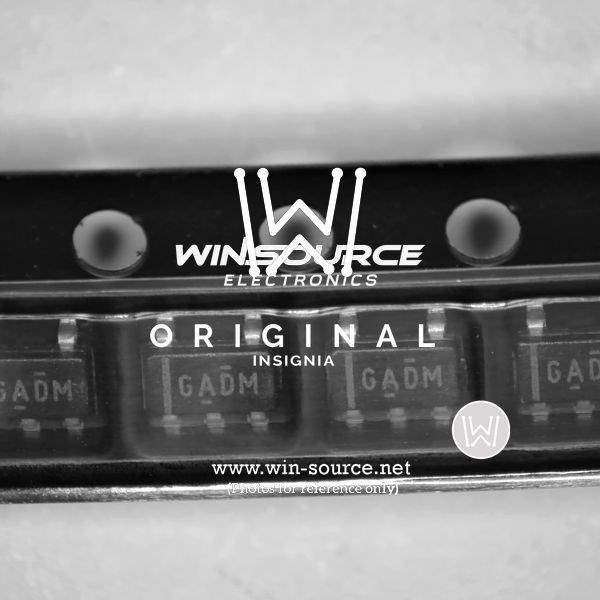

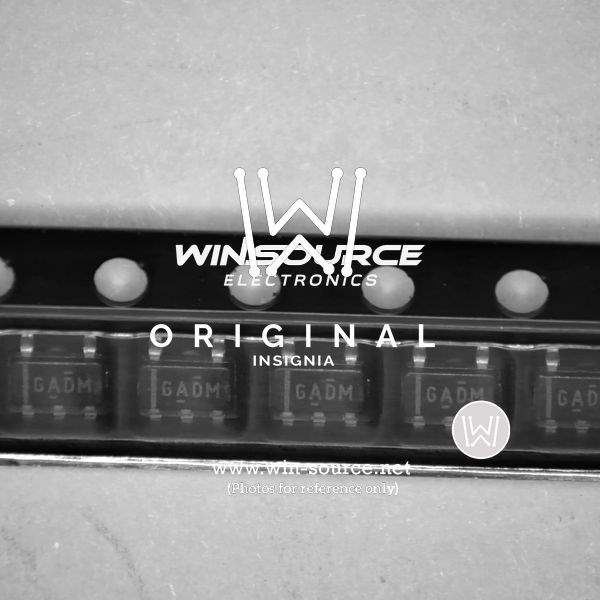

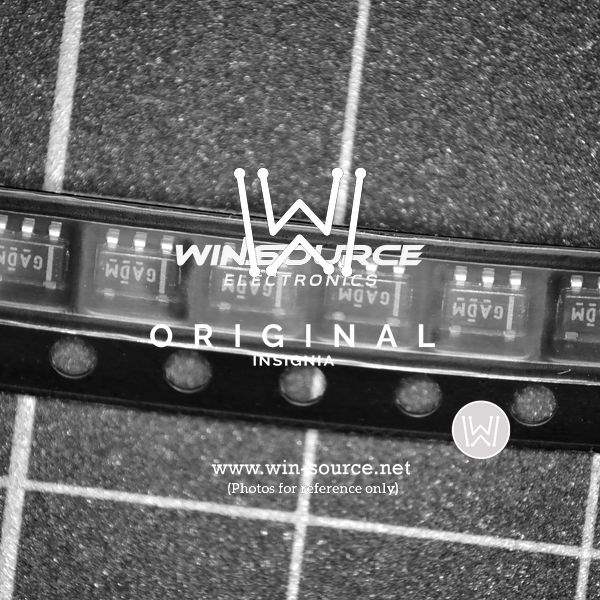

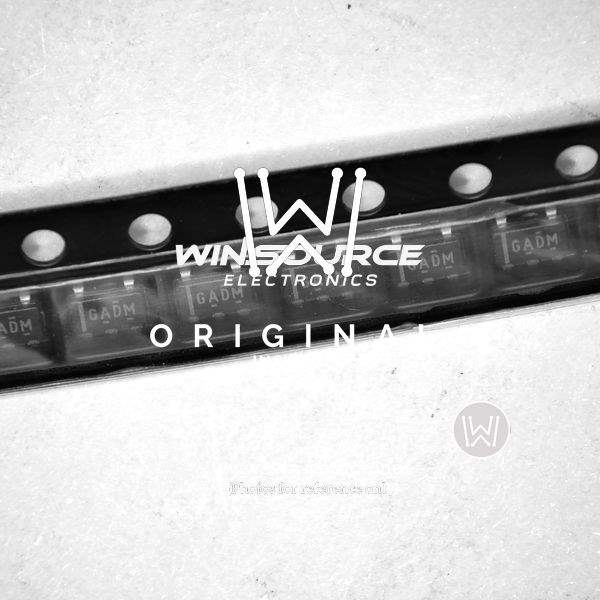

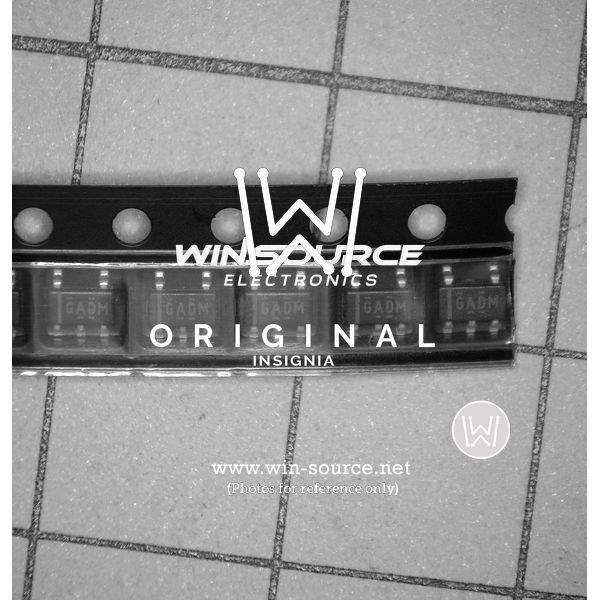

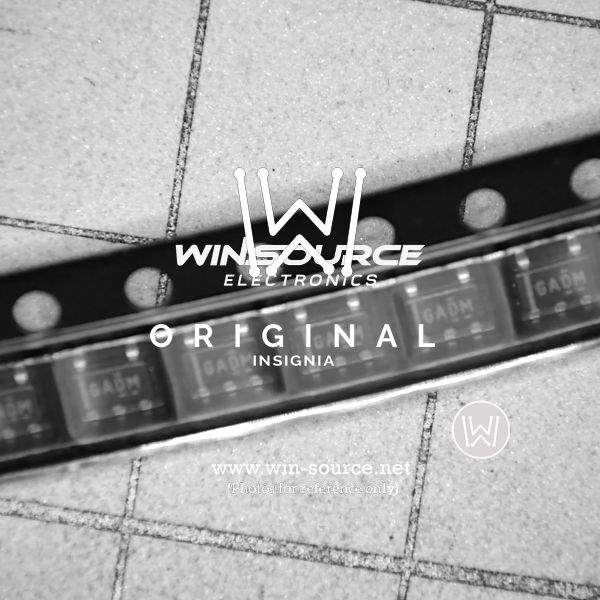

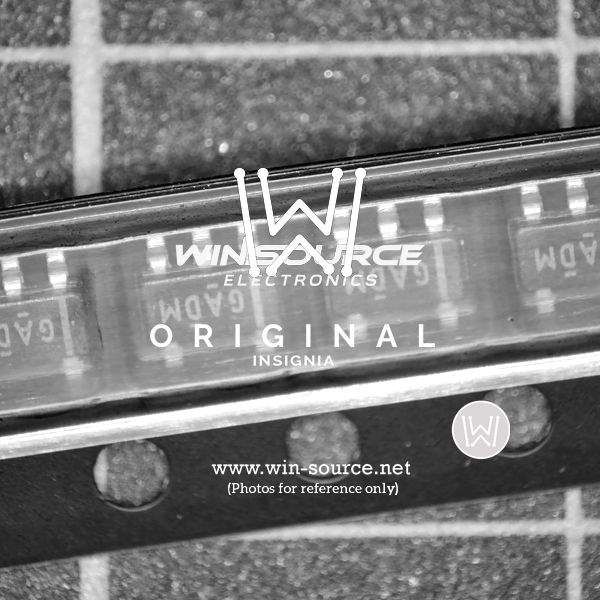

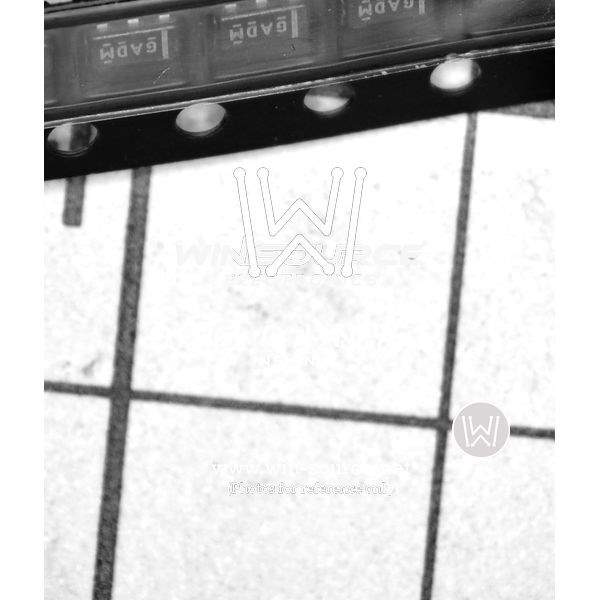

Packaged in a small SOT-23-3, the REF2030AIDDCR is optimized for space-constrained applications. Its compact size, combined with excellent thermal performance, makes it an ideal choice for portable electronics and other applications where space is at a premium.
Additional features of the REF2030AIDDCR include a low quiescent current of 180μA (typical), which helps to extend battery life in portable applications. The device also includes a shutdown feature that reduces current consumption to 1μA (typical) when not in use, providing further power savings.
In summary, the REF2030AIDDCR from Texas Instruments is a robust, high-accuracy voltage reference that provides stable output voltage with minimal temperature dependency, low power consumption, and high output current capability, all within a miniature package. It is an excellent choice for engineers looking to enhance the performance and reliability of their precision analog systems.
