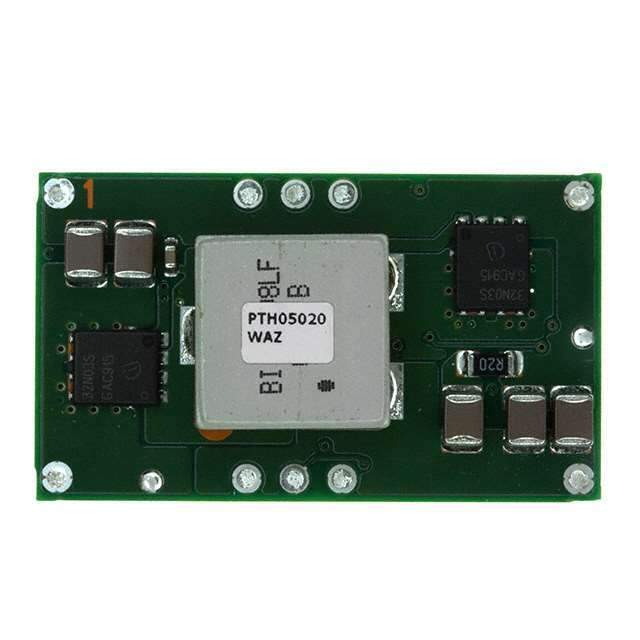

The PTH05020WAZ is a highly efficient, non-isolated power module from Texas Instruments, renowned for its compact size and exceptional performance. This module is part of the PTH series, which is designed to offer a wide-input voltage range and adjustable output voltage, making it a versatile choice for various applications.

Key Features

• Wide Input Voltage Range: The PTH05020WAZ operates with an input voltage range of 4.5V to 14V, accommodating a variety of power sources and ensuring compatibility with multiple system designs.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 3.6V to meet specific requirements, providing flexibility for different applications and optimizing power delivery.
• High Efficiency: This power module boasts high efficiency, which can reach up to 90%, minimizing energy loss and heat generation, thus enhancing system reliability.
• Power Good Output: The inclusion of a 'power good' output signal offers a simple way to monitor the status of the voltage regulator, contributing to system stability and safety.
• Thermal Performance: The PTH05020WAZ is designed with excellent thermal performance in mind, featuring an integrated heat sink that helps to dissipate heat effectively.
• Small Footprint: Its compact size ensures that it can be easily integrated into space-constrained applications without compromising performance.

Applications

The versatility and robustness of the PTH05020WAZ make it suitable for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Data acquisition systems
• Enterprise networking equipment

Quality and Reliability

As with all Texas Instruments products, the PTH05020WAZ is manufactured to the highest quality standards, ensuring reliability and performance in demanding environments. With Texas Instruments' commitment to quality, customers can expect consistent and dependable operation from this power module.
