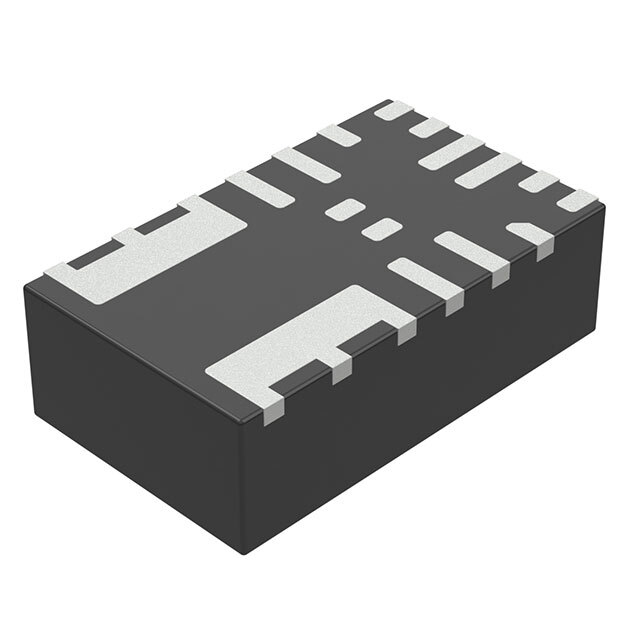

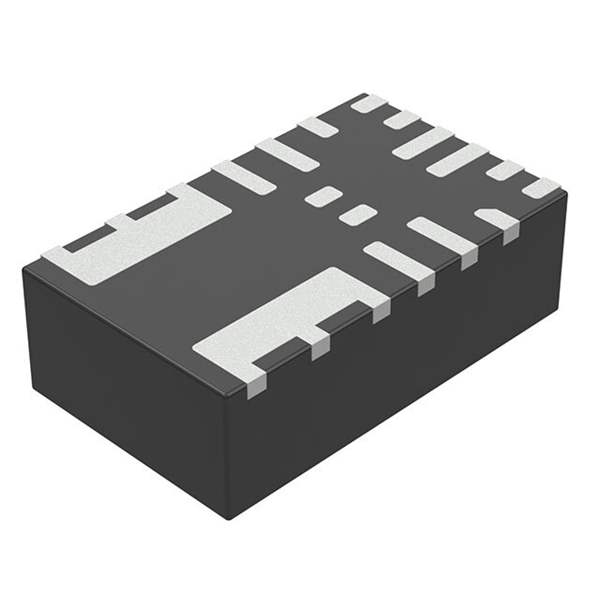

MPM3620AGQV-P Monolithic Power Systems Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MPM3620AGQV-P

Part No MPM3620AGQV-P
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.8-19.9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 24V
Voltage - Output 1 0.8 ~ 19.9V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 20-PowerLFQFN Module
Size / Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 20-QFN (3x5)
Control Features Enable, Active High
Ultra Librarian 3D Model Ultra Librarian MPM3620AGQV-P CAD Model

Description

The Monolithic Power Systems Inc. MPM3620AGQV-P is a non-isolated PoL module that comes in a 20-QFN (5x3) package.

  • Protections: Over-Current (OCP), Over-Temperature (OTP), Under-Voltage Lockout (UVLO)
  • Output: Single
  • Minimum Input Voltage: 4.5V
  • Output Voltage: 0.8V to 19.9V
  • Maximum Input Voltage: 24V
  • Current Output: 2A
  • Temperature Range: -40°C to 125°C
  • Manufacturer Pack Quantity: 500
  • MSL Level: 3 (168 hours)
